FSP SPD Base
The foundation module of FEXLINK smart lightning protection system with intelligent monitoring interface
The FSP SPD Base is the foundation module of the FEXLINK smart lightning protection system, providing reliable surge protection with an intelligent monitoring interface. It is designed for distribution rooms and critical infrastructure, offering a robust base for comprehensive lightning protection solutions.
Product Overview

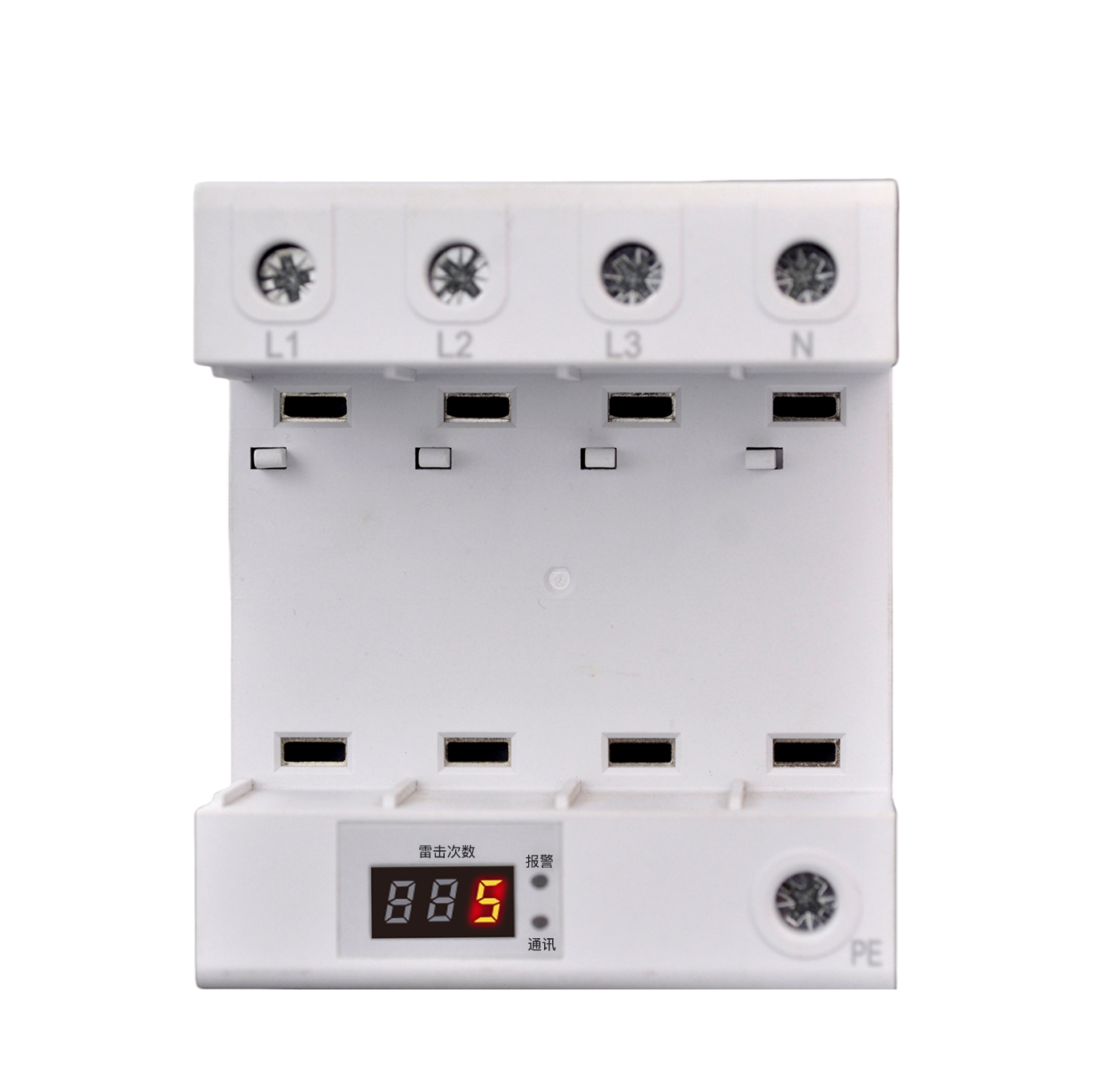

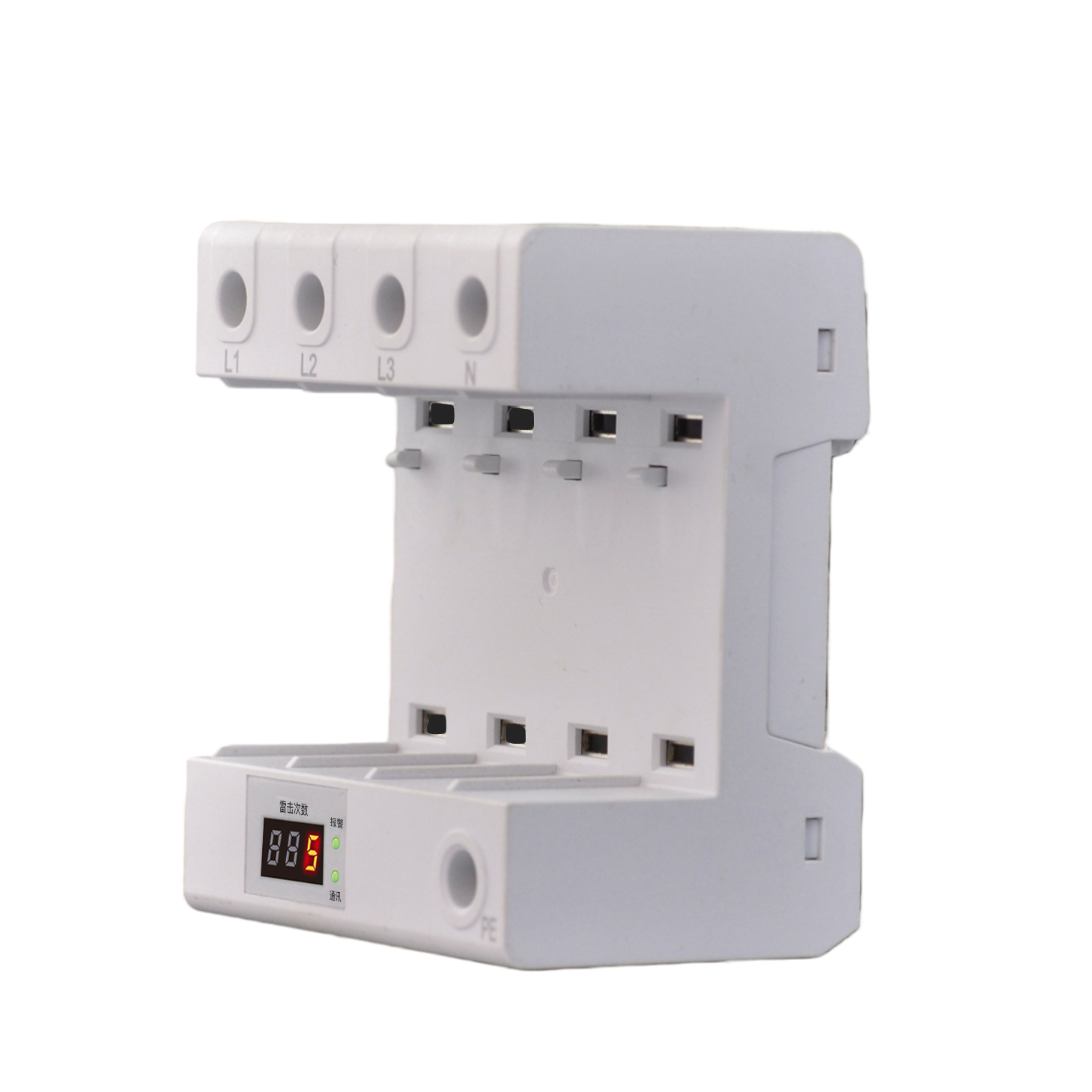

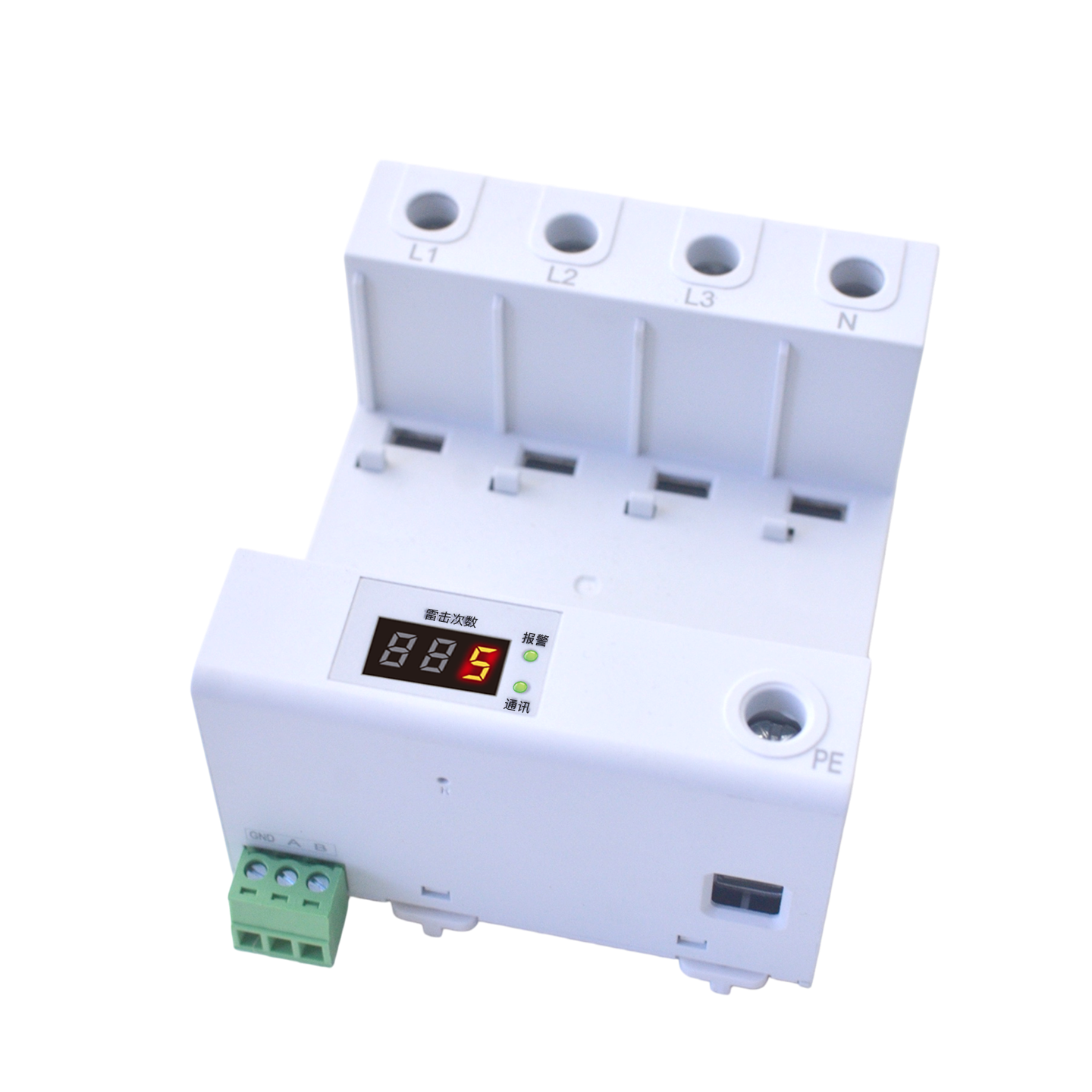

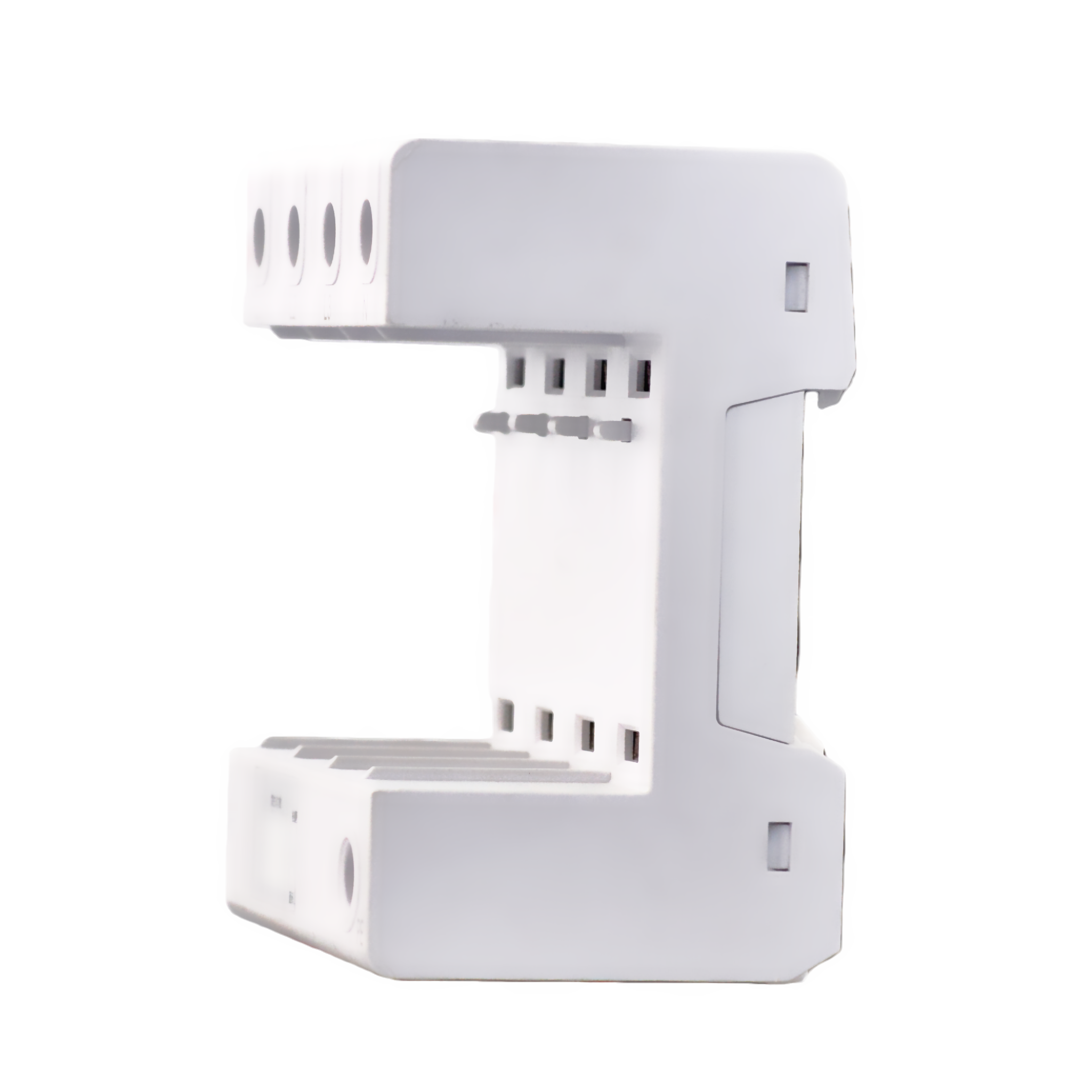

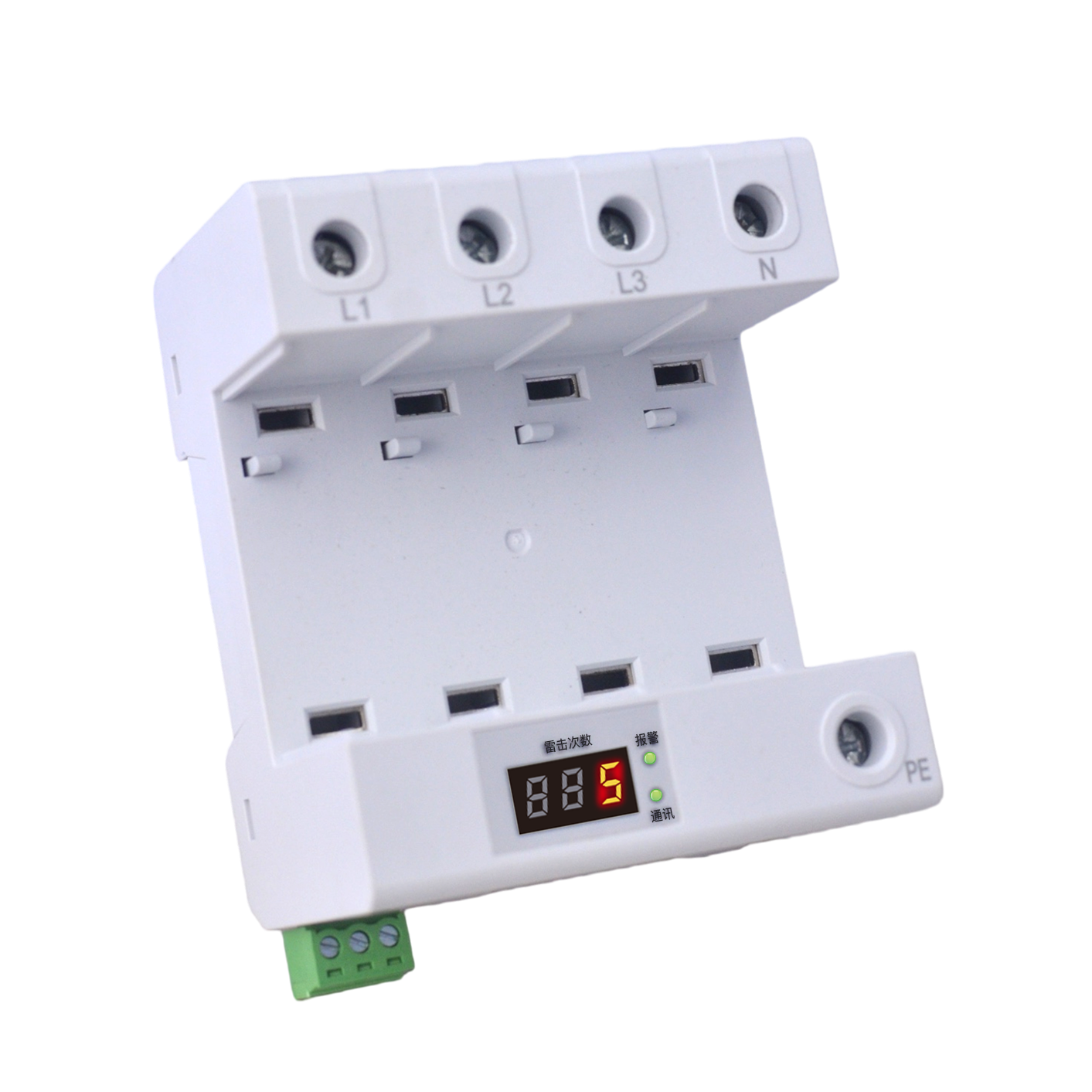

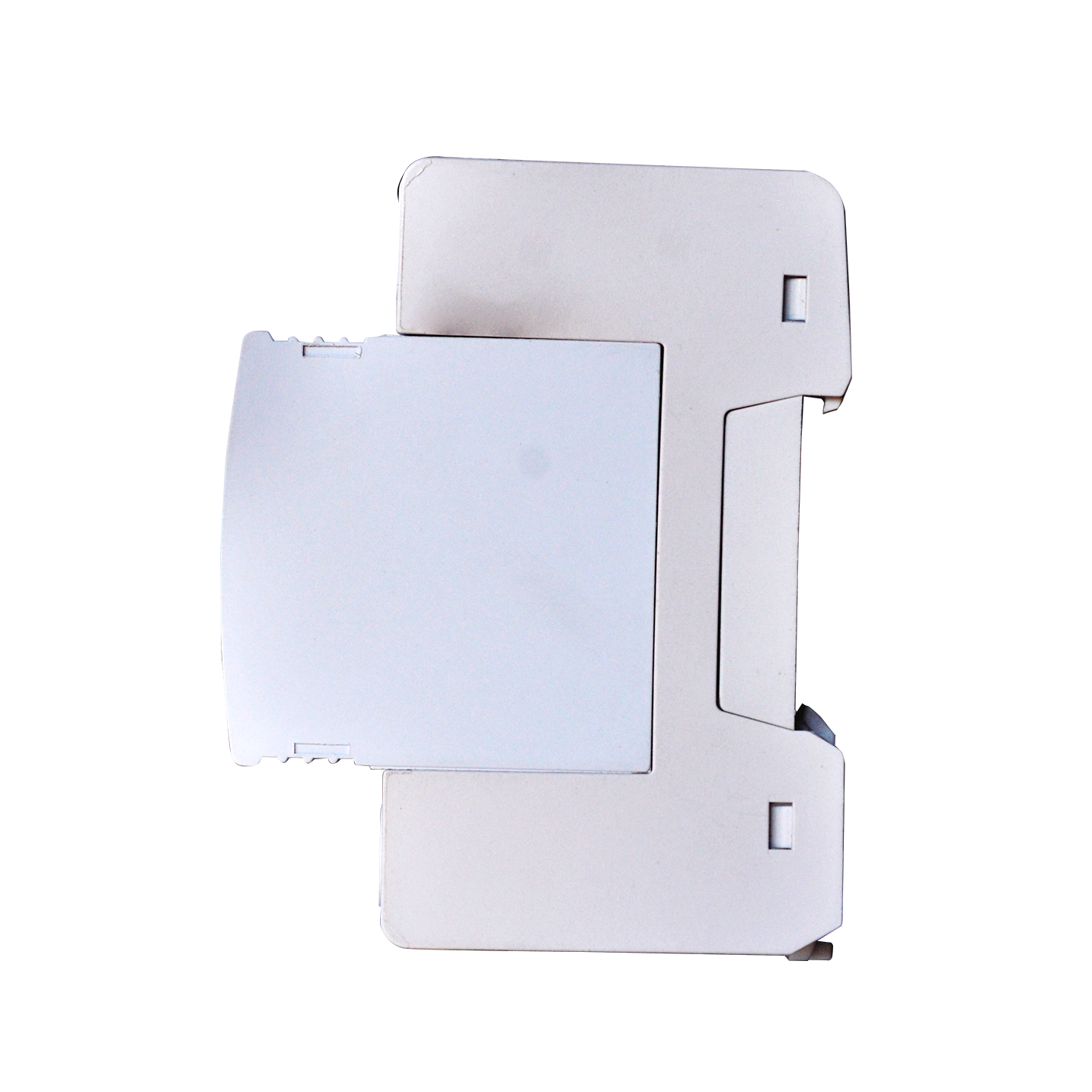

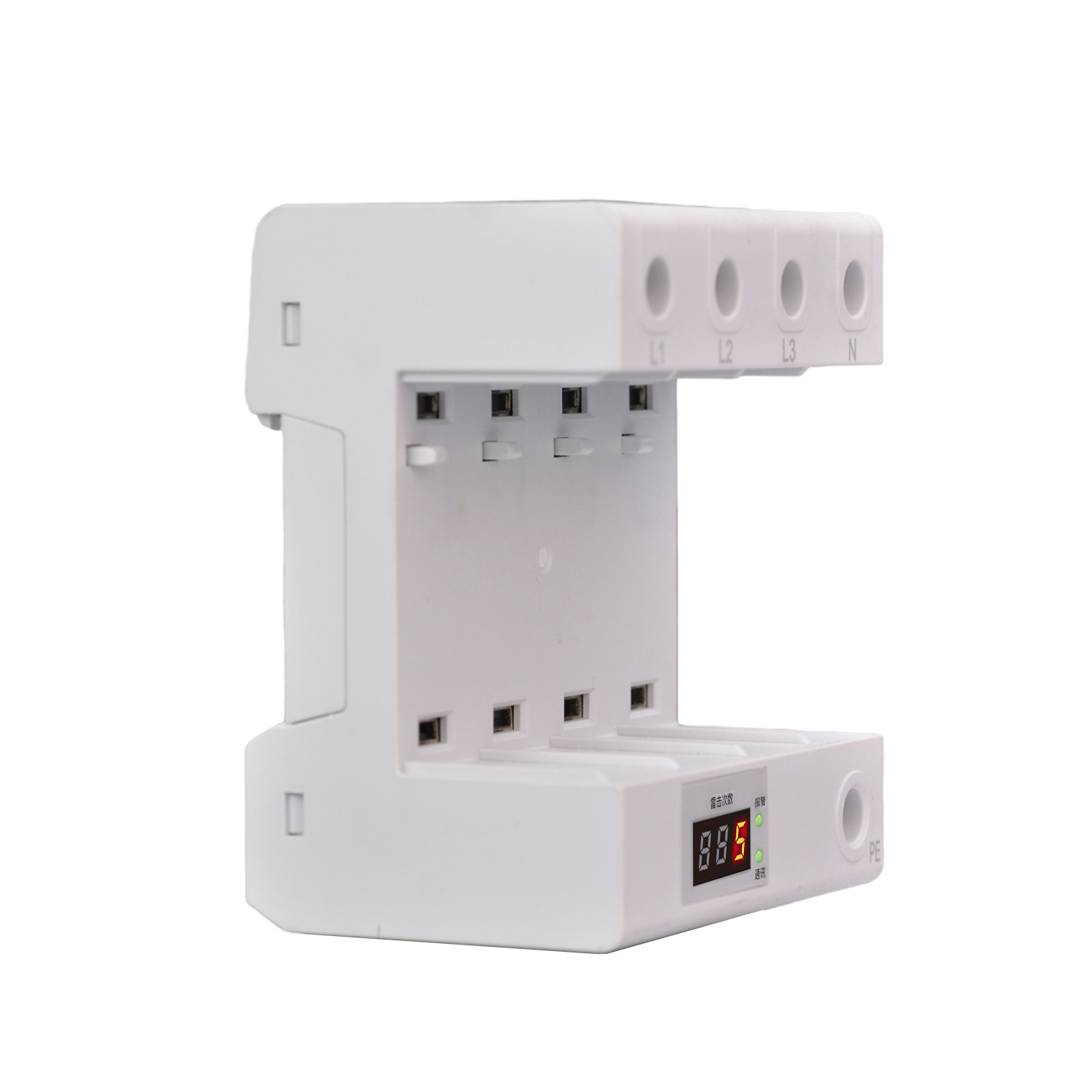

FSP Lightning Protection Monitoring Base is a plug-in smart SPD. Its appearance and dimensions are consistent with standard SPD bases, allowing conventional SPD plug-in modules to be inserted directly into the socket. The socket integrates a high-precision main control circuit board, requiring no complex configuration — simply plug in the module for smart operation.
Products cover T2 lightning protection device protection requirements, and also cover T1 lightning protection device protection requirements, widely applied in various field electrical scenarios. Supports RS485 communication interface, easily accessing third-party monitoring platforms. Integrating acquisition, monitoring, transmission and intelligence with fully built-in sensor design, while still retaining plug-in module support for local display, with no need for external power supply.
Core Capabilities
- Plug-in design, suitable for conventional modules, compact and elegant appearance.
- Integrating acquisition, monitoring, transmission and intelligence with fully built-in sensor design.
- Built-in lightning sensor, lightning count 0~9999 orders, minimum trigger 0.1kA.
- Real-time monitoring of SPD internal tripping connection status; any single channel tripping disconnection triggers a local red light alarm.
Product Features
High Degree of Integration
Products cover T2 lightning protection device protection requirements, and also cover T1 lightning protection device protection requirements, widely applied in various field electrical scenarios. Supports RS485 communication interface, easily accessing third-party monitoring platforms.
Widely Applicable
Temperature Monitoring Function: Built-in temperature sensor, real-time insight into electrical surge module temperature change status. Lightning Count Function: Built-in lightning sensor, high-precision capture of lightning intrusion data etc.
Powerful Function
Supports linkage control (matched dedicated gateway), LED display, plug-in design; compact and elegant appearance, can easily replace existing SPDs. No need for external power supply, supports cache function, MODBUS standard protocols.
Convenient and Compact
Compact and elegant appearance, can easily replace existing SPDs; plug-in design, suitable for conventional modules; plug-and-play smart operation, no need for complex configuration etc.
Tripping Dry Contact Alarm
Real-time monitoring of SPD internal tripping connection status; any single channel tripping disconnection triggers a local red light alarm, providing one-time failure risk warning to avoid accidents caused by lightning protection failure.
Multiple Power Supply Version Optional
Provides AC220V Power Supply Version and DC5V Power Supply Version, Suitable for Different Distribution Cabinet Electrical Items, Selection Flexible, Easy Deployment.
Model Selection Guide
Model Naming Convention
| Model | Power Supply | Display | Dry Contact Input | Lightning Count | Temperature Monitoring | Communication Interface |
|---|---|---|---|---|---|---|
| FSP-21000-R | AC220V | LED Display | 1 channel | -- | -- | RS485 Modbus |
| FSP-21100-R | AC220V | LED Display | 1 channel | Yes | -- | RS485 Modbus |
| FSP-11000-R | DC5V | LED Display | 1 channel | -- | -- | RS485 Modbus |
| FSP-11100-R | DC5V | LED Display | 1 channel | Yes | -- | RS485 Modbus |
Technical Specifications
Basic Parameters
| Working Voltage | AC 220V / DC 5V |
| Power Consumption | ≤2W |
| Operating Temperature | -20℃~60℃ |
| Working Humidity | <95% |
| Product Weight | 155g |
| Dimensions | 72*83*50mm (L×W×H) |
| Housing Material | Thermoplastic Material UL94 V-0 |
| Protection Class | IP20 |
| Mounting Method | Standard 35mm DIN Rail Mount |
| Display Type | LED Display |
Smart Monitoring Function
| Communication Interface | RS485 |
| Communication Protocols | Modbus protocols |
| Dry Contact Input | Monitoring SPD status (Tripping Connection Status) |
| Lightning Count | 0~9999 orders, minimum trigger 0.1kA |
| Temperature Monitoring | Built-in Monitoring Temperature: -30~125℃, ±1℃ |
| Local Alarm | Any single channel tripping disconnection triggers local red light alarm |
| Cache Function | Yes |
| Linkage Control | Support (Matched Dedicated Gateway) |
Installation Instructions

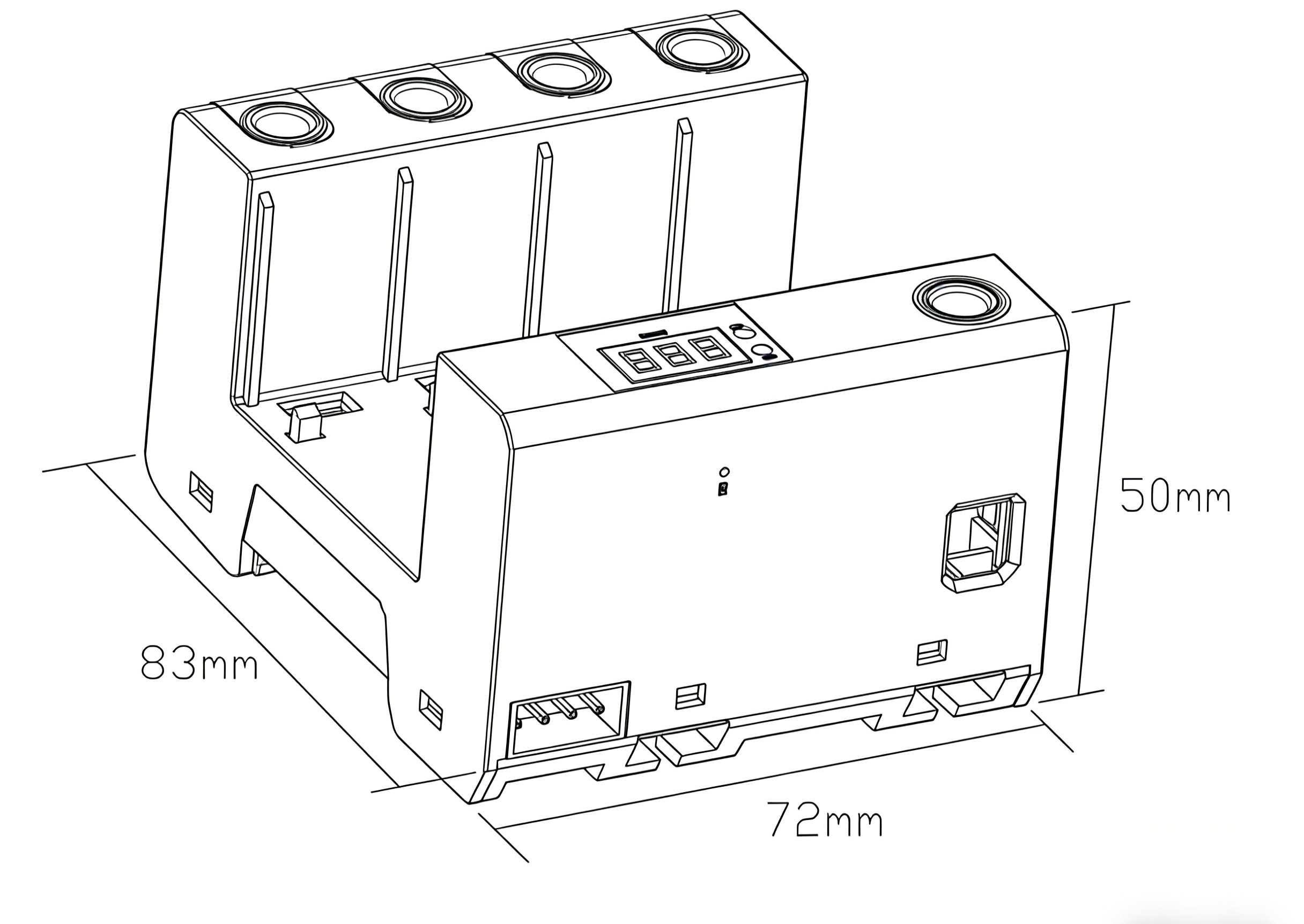

Installation Dimensions Image

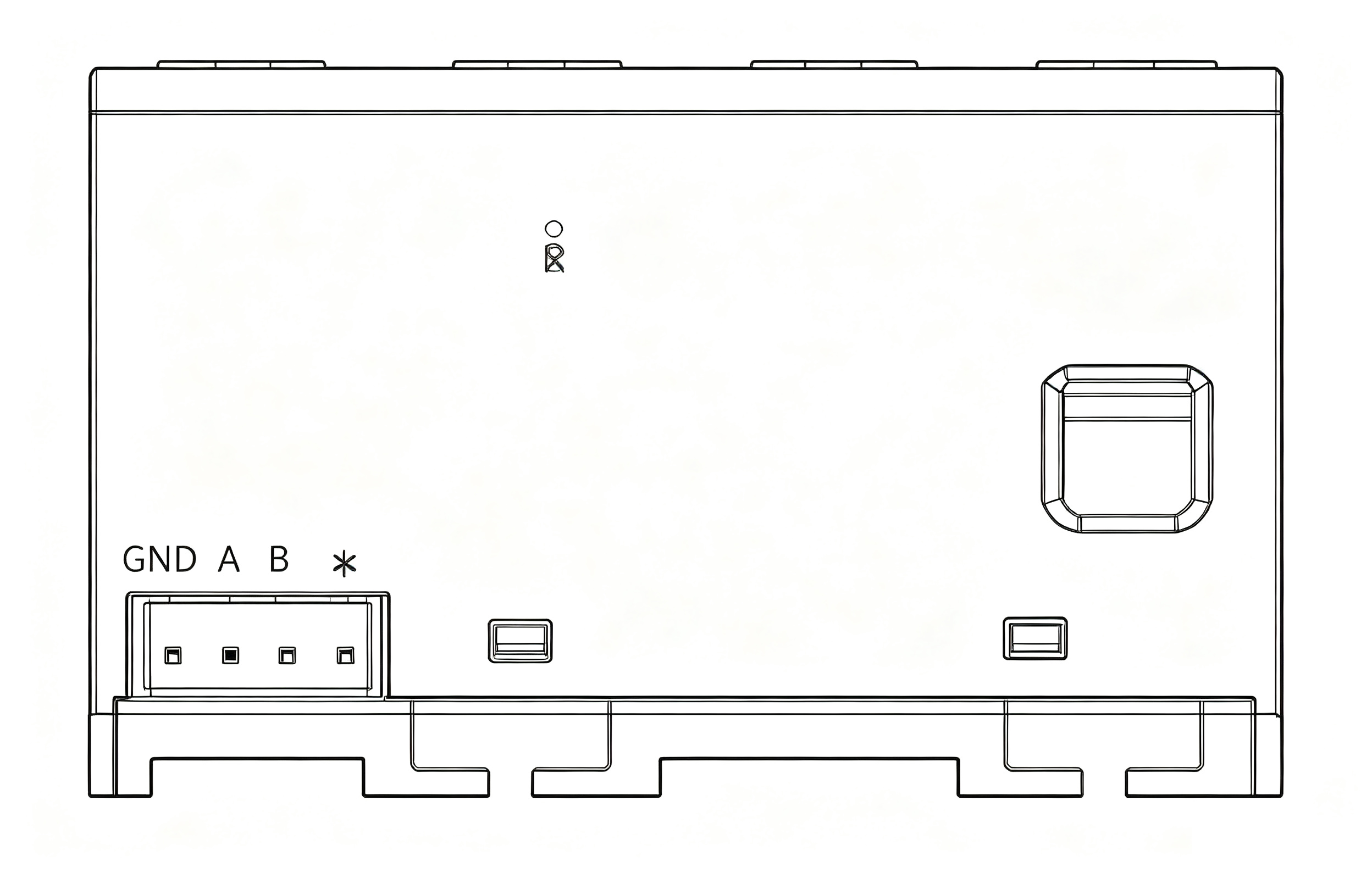

Interface Description
Interface Definition
| Pin Class | Number | Definition |
|---|---|---|
| SPD | L1 | A phase |
| L2 | B phase | |
| L3 | C phase | |
| N | Neutral Wire | |
| PE | Ground Wire | |
| Power Supply | * | External 5V DC (externally placed power supply version) |
| GND | 0V | |
| RS485 Communication | A | RS485 A End |
| B | RS485 B End | |
| Button | R | Settings and count clear zero |
Key Points
- Definition： The FSP Smart SPD Base is FEXLINK's pluggable smart SPD base, integrating acquisition, measurement, transmission and intelligence, designed to work with pluggable SPD modules.
- Core Capabilities： Supports hot-swappable SPD module replacement; built-in leakage, temperature and lightning count monitoring; works with FSS-series modules to deliver full-element condition sensing and lifespan prediction.
- Scenarios： Suitable for distribution cabinets and equipment racks where SPD modules need to be maintained or replaced frequently.
- Related Products： FSS Smart SPD, FS SPD Monitor, FG Smart Gateway.
Frequently Asked Questions
Product FAQ
What is FSP Smart SPD Base?
The FSP Smart SPD Base is FEXLINK's pluggable smart SPD base, integrating acquisition, measurement, transmission and intelligence, designed to work with pluggable SPD modules.
What scenarios does FSP Smart SPD Base apply to?
Suitable for distribution cabinets and equipment racks where SPD modules need to be maintained or replaced frequently.
How does FSP Smart SPD Base differ from traditional solutions?
Compared with integrated SPDs, the FSP separates the base from the pluggable module, making maintenance and replacement easier without powering down the entire SPD.
How is FSP Smart SPD Base installed and integrated?
Mounts on a standard 35mm DIN rail, insert the matching SPD module, and connect L/N and A/B RS485 bus.
How can I purchase FEXLINK products or request a demo?
Submit requirements via the Contact page on the FEXLINK website, or call +86-755-8653-6148 to request a demo and selection consultation; engineers will propose a matched solution and quotation based on your scenario.
