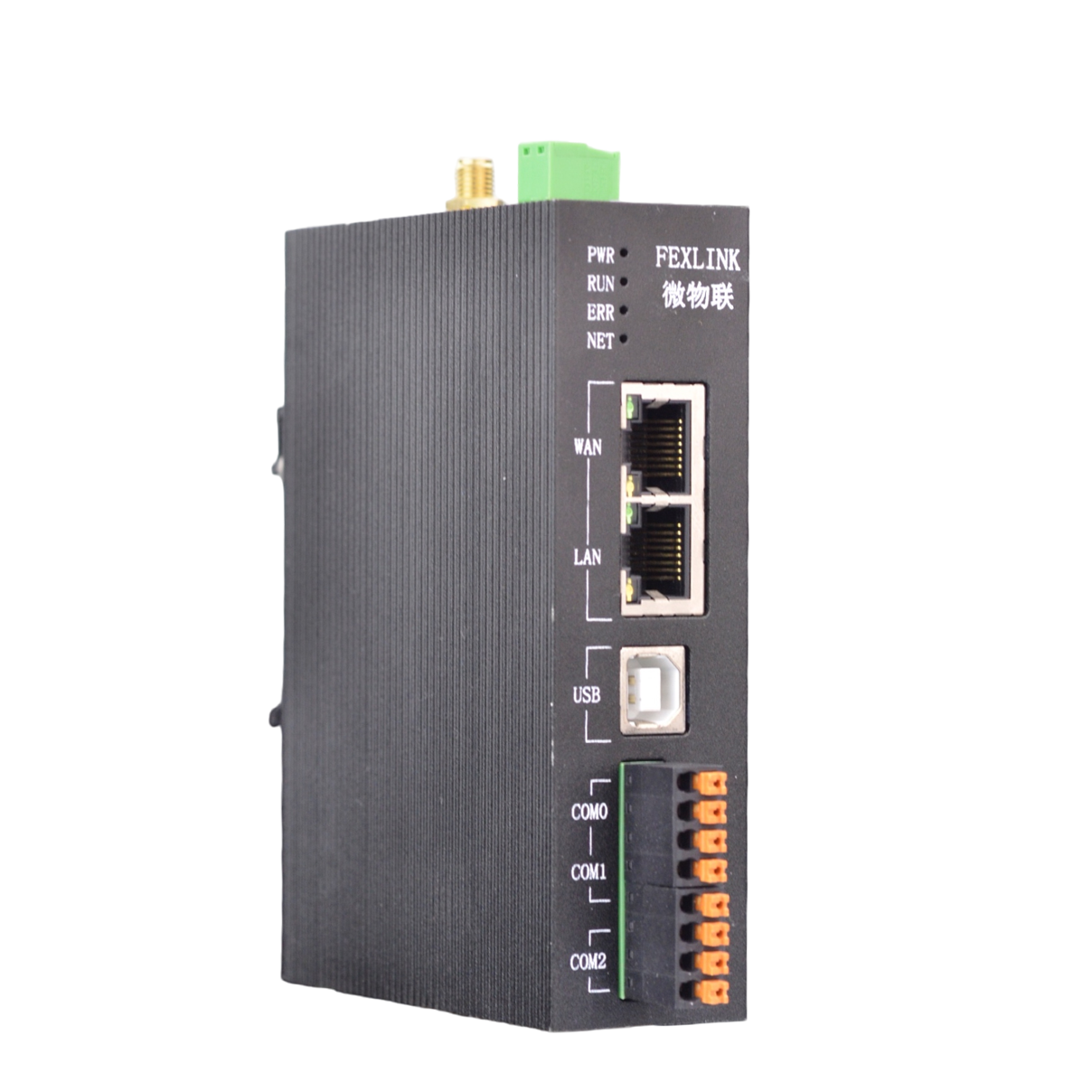

CW Edge Computing Gateway
Edge Intelligence · Multi-Protocol Access · Network Break Auto-Resume
The CW Edge Computing Gateway provides edge computing and IoT connectivity for digital energy applications. It integrates multi-protocol data acquisition, local processing and cloud synchronization, enabling Real-Time data processing and intelligent control at the network edge.
Product Overview
CW Edge Computing Gateway is FEXLINK's intelligent edge access device designed for industrial IoT scenarios,with a built-in edge computing development engine and an open data acquisition development engine,that supports secondary development and custom protocols.

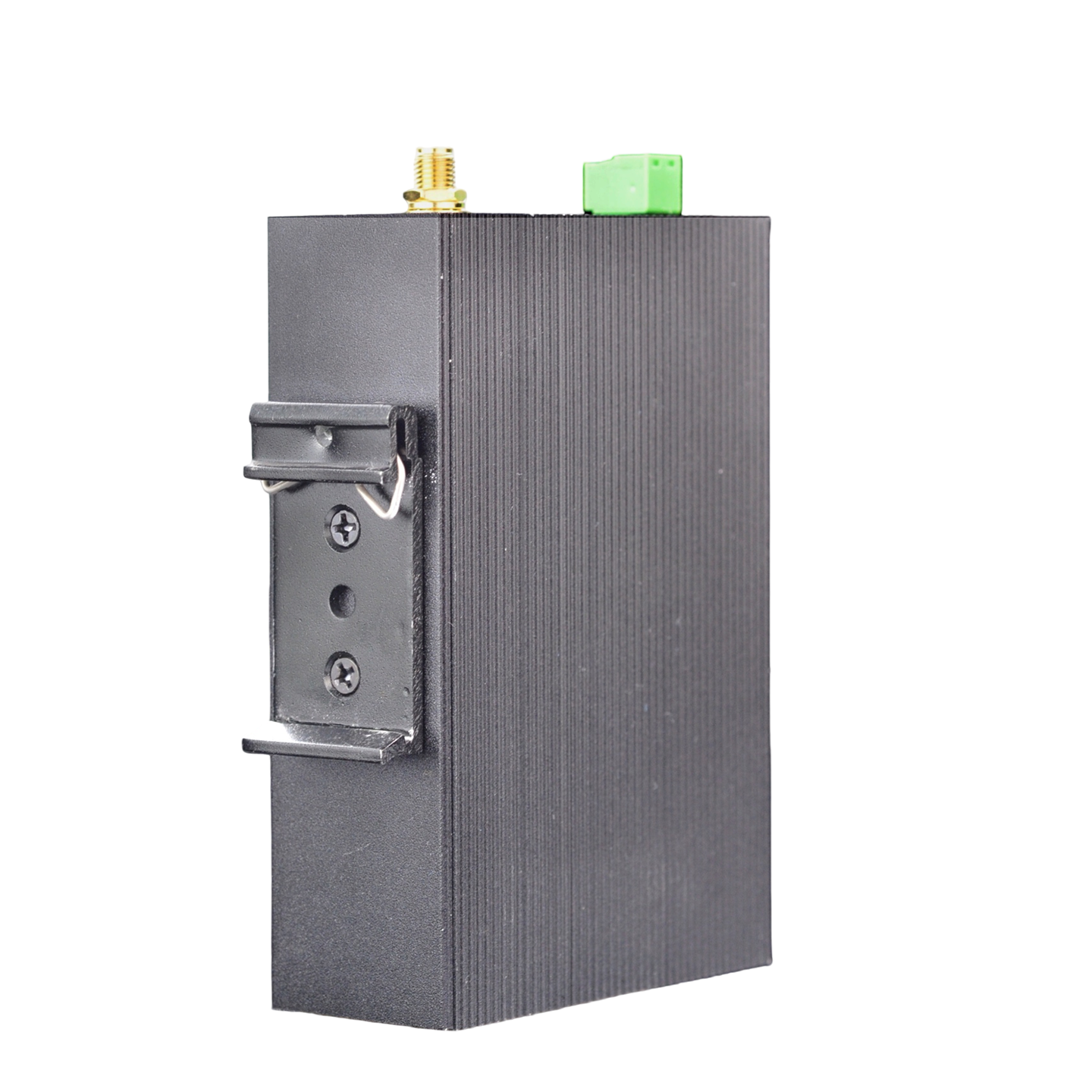

Downlink via 2-channel RS485 or Zigbee Acquisition PLC, HMI, meter, sensor and other device data; uplink via wired Ethernet or Wireless 4G to access the Cloud Platform.Features millisecond alarm prediction, network break auto-resume, traffic saving, data encryption, switch and other core capabilities,Metal housing, standard 35mm DIN rail installation,suitable for various industrial control cabinets.
Core Capabilities
- Edge Computing Engine: Built-in edge computing development engine and data acquisition development engine, supports user-defined data acquisition protocols and secondary development.
- Multi-Protocol Access: Built-in mainstream PLC, HMI and other device Communication Protocols; simple setup for device networking.
- Millisecond Alarm: Built-in abnormality detection algorithm for millisecond-level alarm prediction on data.
- Multi-Mode Networking: Supports 4G, Ethernet, Zigbee and other uplink communication interfaces to suit various on-site networking environments.
Product Features
Edge Computing Engine
Built-in edge computing development engine and open data acquisition development engine, supports secondary development and processing of data, supports user-defined data acquisition protocols.
Built-in Protocols
Built-in mainstream PLC, HMI and other device Communication Protocols; simple setup for networking, eliminating complex protocol development.
Alarm Prediction
Built-in abnormality detection algorithm, for millisecond-level alarm processing on data, local fast response to abnormal events.
Easy Networking
Supports 4G, WiFi, Ethernet Multiple side-style connection Platform, On-Site Plug-and-Play, Suitable for Various Networking Environments.
Network Break Auto-Resume
Supports inserting an SD card for local storage, with auto-resume after network recovery, ensuring no data loss.
Traffic Saving
Data supports on-change + periodic upload strategy, significantly saving traffic and reducing operations cost.
Channel Function
Acts as a 4G router, providing network access for on-site devices, multi-function device.
Data Security
Built-in asymmetric encryption algorithm, data transmission encrypted, protecting industrial data security.
Switch Function
Acts as a switch, touch screen + PLC via modules form a LAN, simplifying on-site wiring.
Model Selection Guide
Model Naming Convention
| Model | Power Supply | Downlink Communication(RS485) | Downlink Communication(Zigbee) | Uplink Communication(Ethernet) | Uplink Communication(4G) |
|---|---|---|---|---|---|
| CW-C1 | External Power Supply DC24V | 2-Channel | No | Yes | No |
| CW-C2 | External Power Supply DC24V | 2-Channel | No | No | Yes |
| CW-C3 | External Power Supply DC24V | 2-Channel | Yes | Yes | No |
Technical Specifications
Basic Parameters
| Working Voltage | DC 24V |
| Power Consumption | ≤2W |
| Operating Temperature | -20℃~70℃ |
| Working Humidity | <95% |
| Product Weight | 420g |
| dimension | 31×110×78mm(L×W×H) |
| Housing Material | Metal Housing |
| Protection Class | IP20 |
| Mounting Method | Standard 35mm DIN Rail Mount |
Communication Function
| Downlink Communication Interface | RS485 / Zigbee |
| Uplink Communication Interface | Ethernet / Wireless 4G |
| RS485 Through Channel | 2-Channel(COM0/COM1) |
| Ethernetport | 2pcs(WAN/LAN) |
| Serial Port | COM2:RS232 |
| USB Interface | 1pcs USB Up Download Program Port |
| Indicator Light | PWR(Power Supply),RUN(Running),ERR(Fault),NET(Network) |
| Data Storage | Supports SD Card Local Storage, Network Break Auto-Resume |
| Data Security | Asymmetric Encryption Algorithm |
installation Instructions

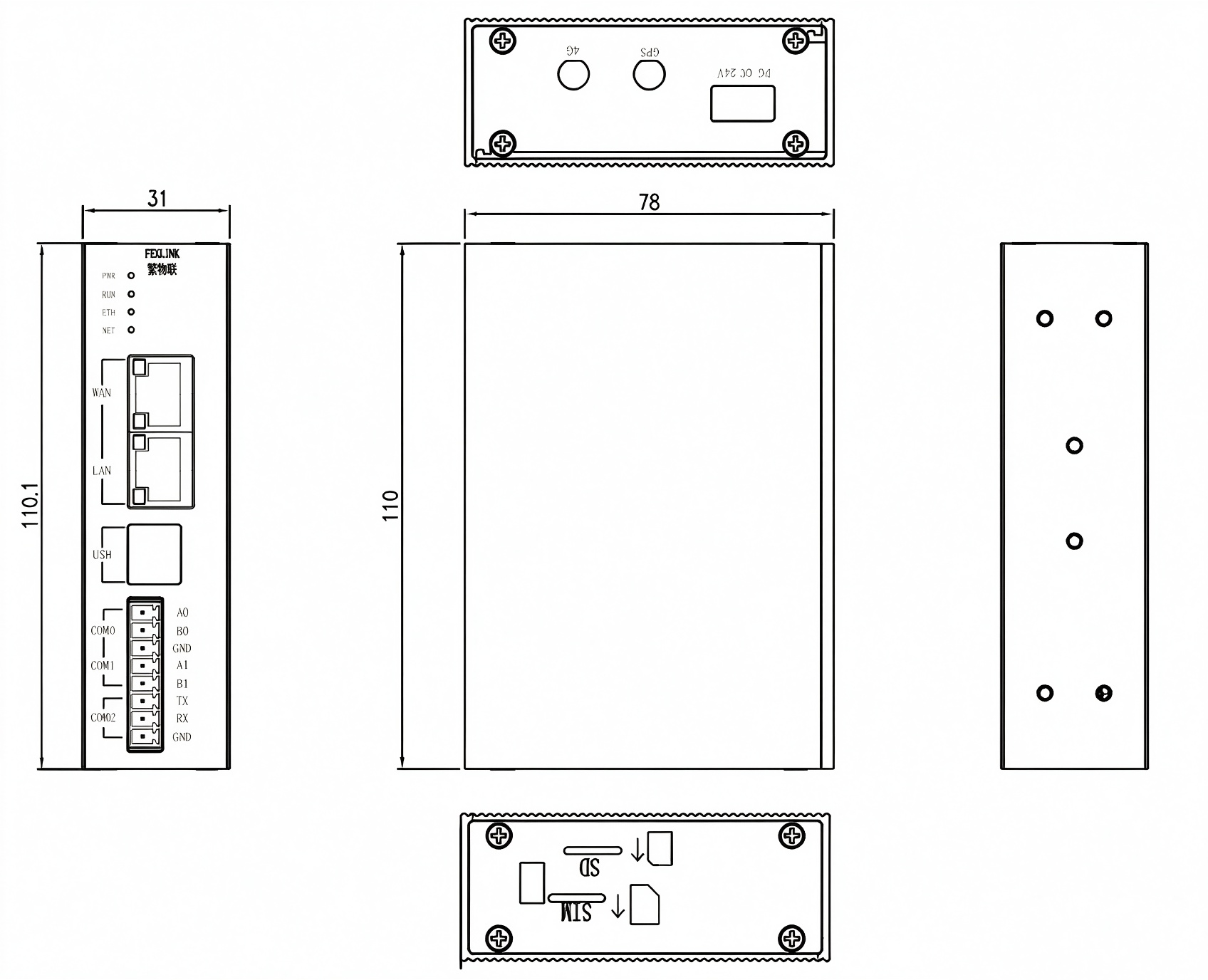

Installation Dimensions Image

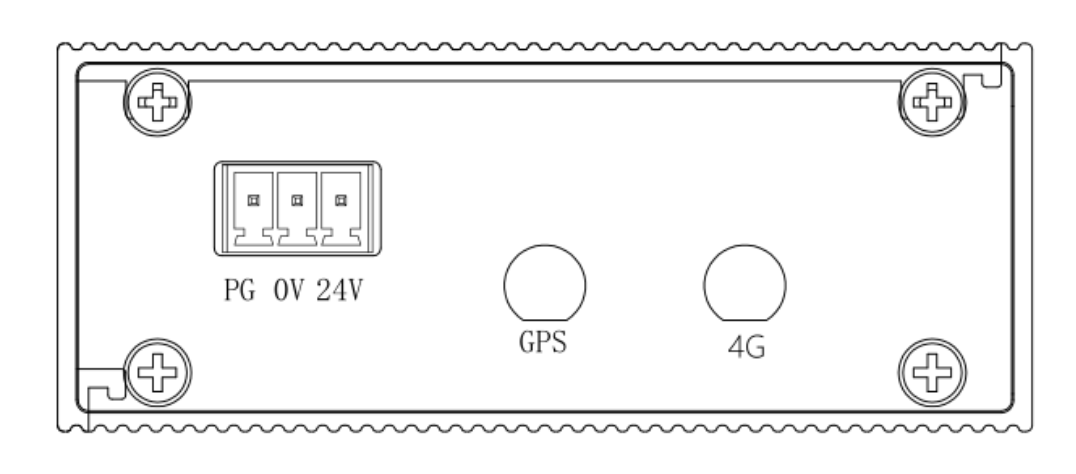

Interface Description(Power Supply and Antenna)
Interface Definition
| Pin Class | Interface | Definition |
|---|---|---|
| power Supply | DC24V | External Power Supply Input(positive/negative poles) |
| Antenna | Zigbee Antenna Port | Zigbee Wireless Communication Antenna Interface (CW-C3 Model) |
| Antenna | 4G signal No. Antenna port | 4G Wireless Communication Antenna Interface (CW-C2 Model) |
| Indicator Light | PWR | Power Supply Indicator Light |
| Indicator Light | RUN | Running Stop Indicator Light |
| Indicator Light | ERR | Fault Alarm Indicator Light |
| Indicator Light | NET | Network Indicator Light |

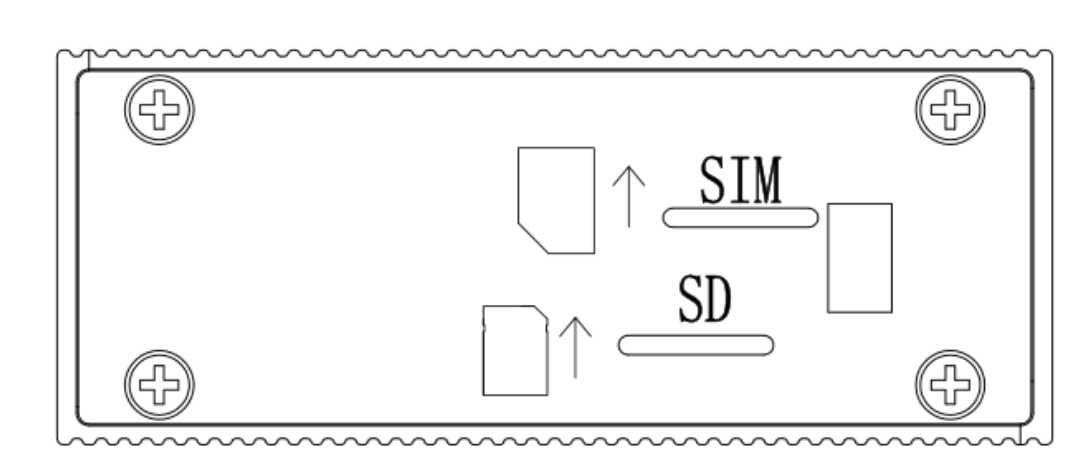

Interface Description (4G Card & DIP Switch)
Interface Definition
| Pin Class | Interface | Definition |
|---|---|---|
| SIM Slot | 4G Slot plug Slot port | 4G Communication SIM Slot slot (CW-C2 Model) |
| Configuration | DIP Switch | Device Address and Communication Parameters Configuration DIP switch |
| Storage | SD card slot | SD card local storage slot, Support Network Break Auto-Resume |

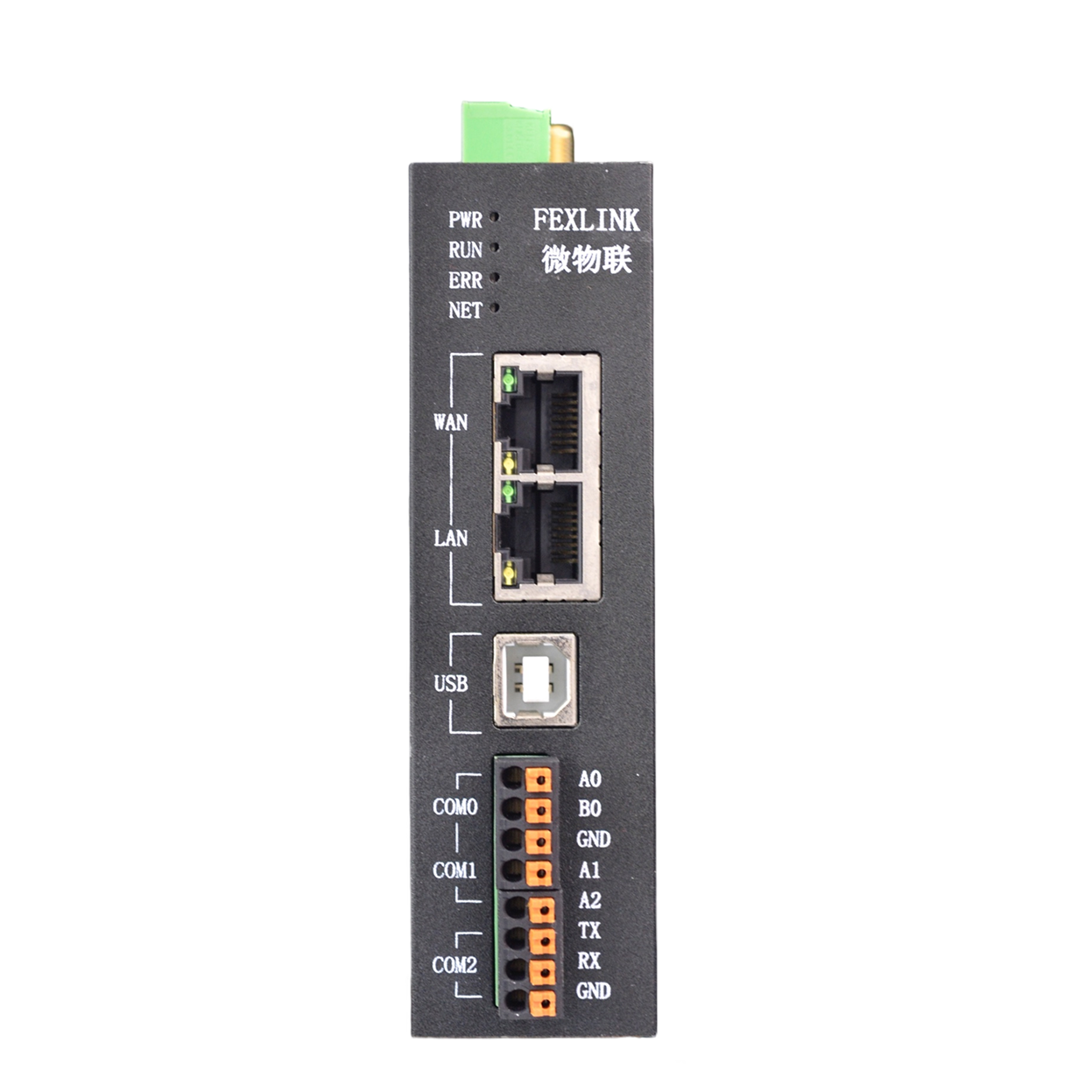

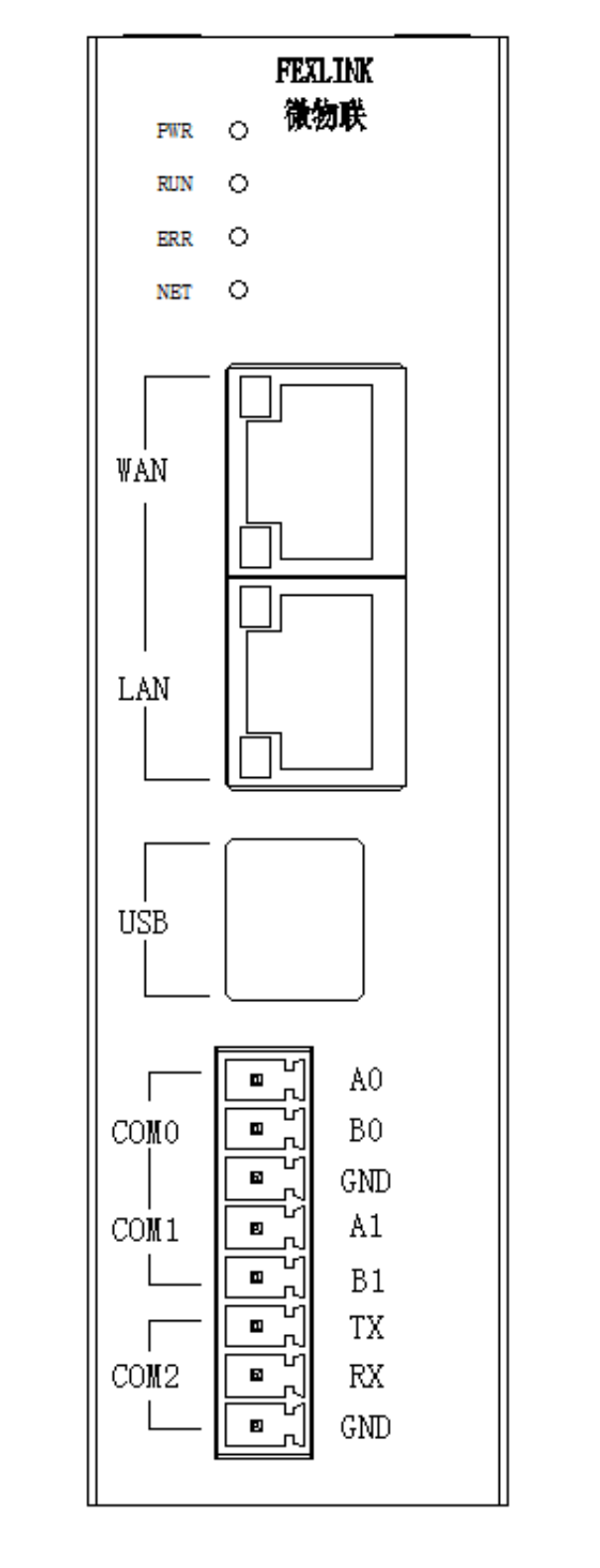

Interface Description (Ethernet & Serial Port)
Interface Definition
| Pin Class | Interface | Definition |
|---|---|---|
| Ethernet Port | WAN | Wide-area Ethernet Port, can be made up Download program port or Communication port |
| Ethernet Port | LAN | LAN port, can be made up Download program port or Communication port |
| USB | USB port | one pcs USB up Download program port |
| Serial Port | COM0 | RS485-0, Downlink to acquire Communication port 1 |
| Serial Port | COM1 | RS485-1, Downlink to acquire Communication port 2 |
| Serial Port | COM2 | RS232 Serial Port |
