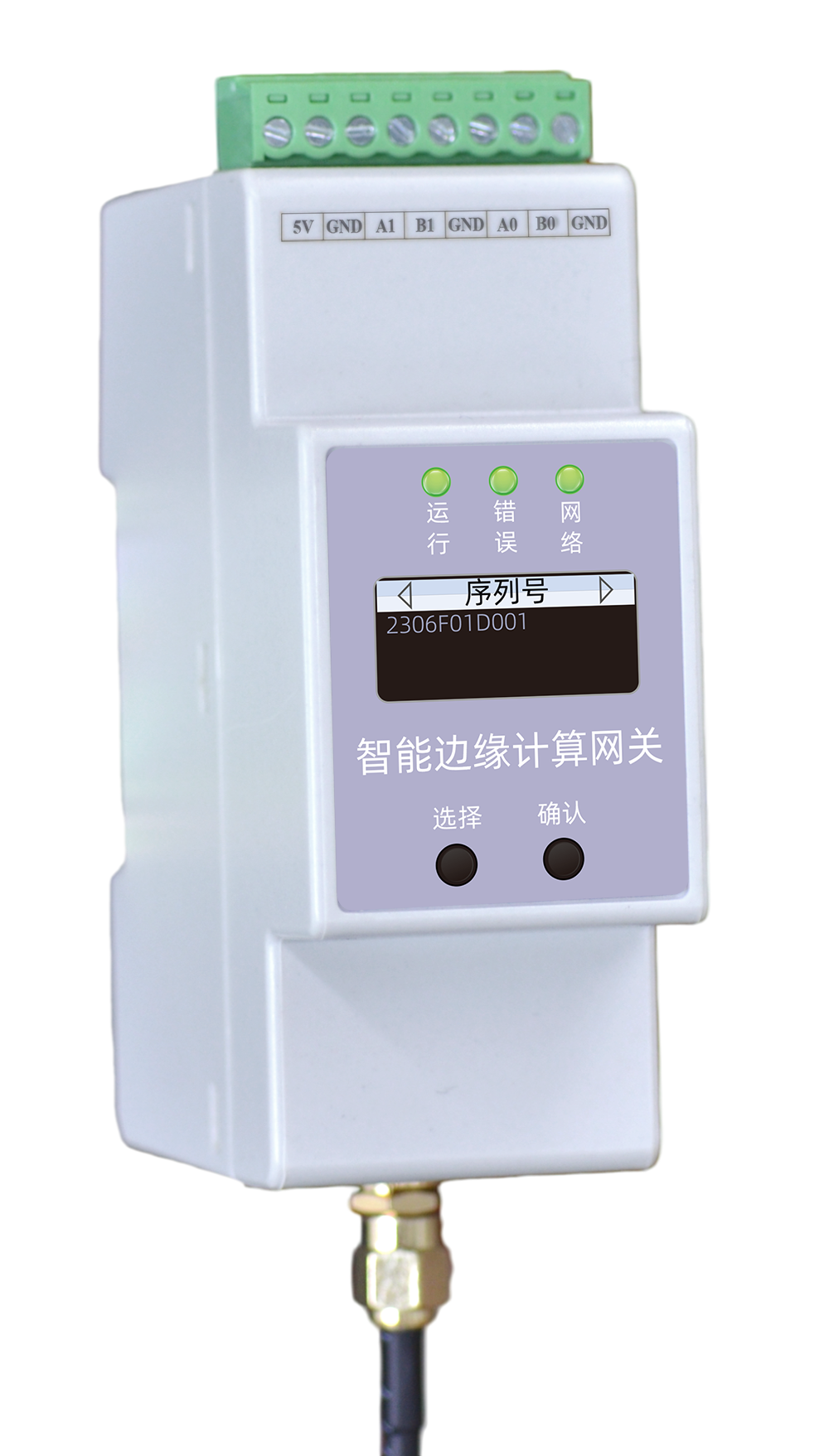

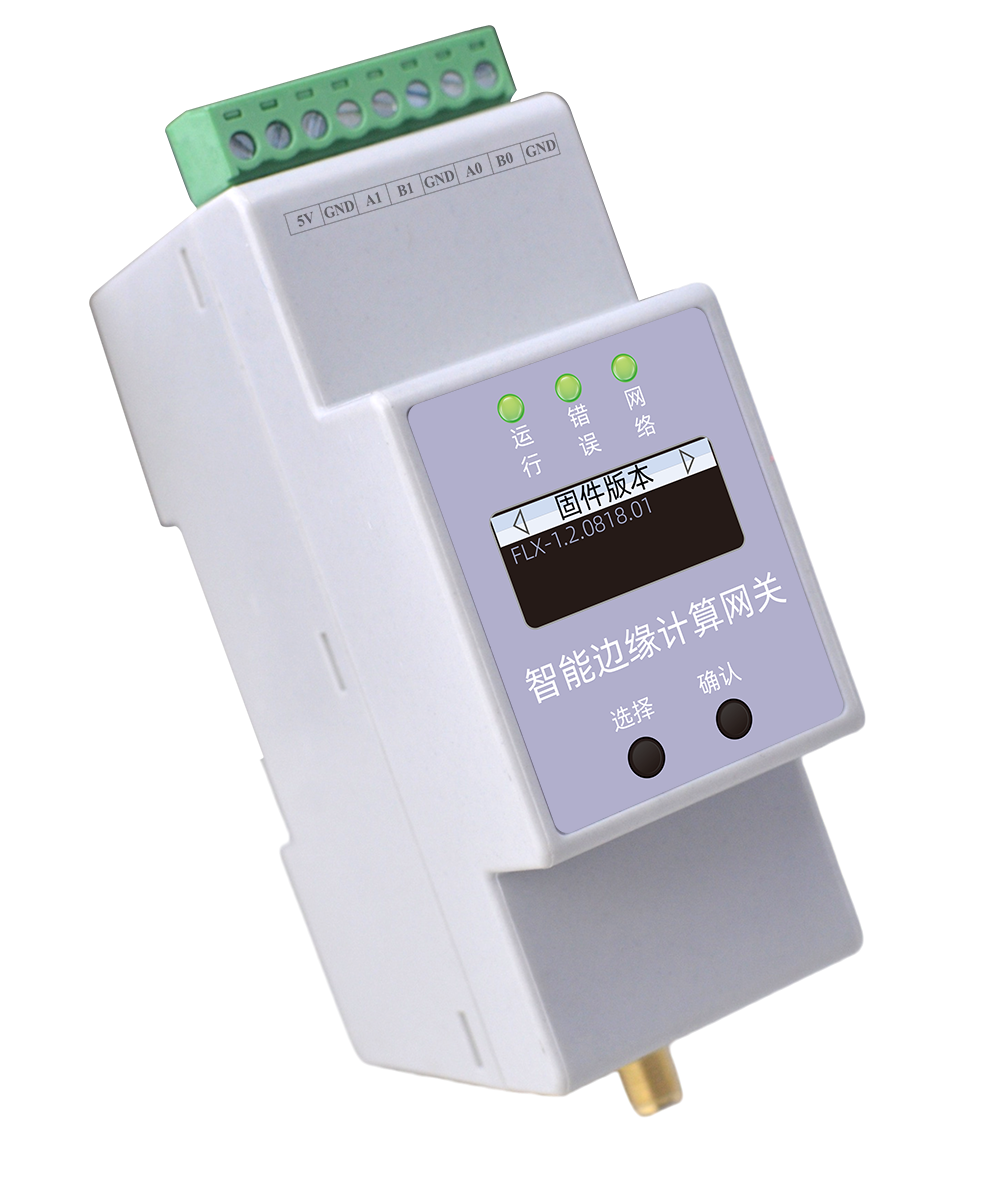

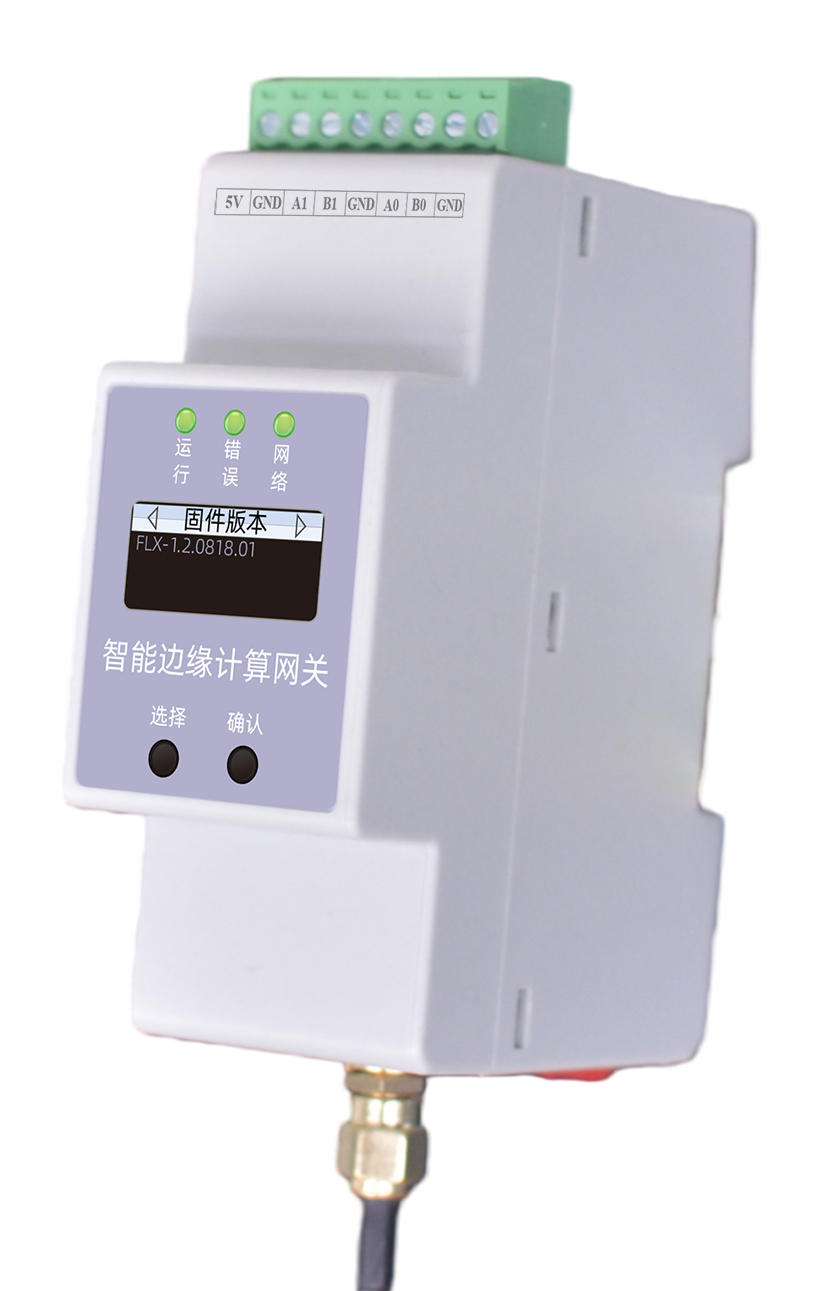

ESX Smart Gateway
Edge Computing + Protocol Conversion + Network Transmission, the Core Hub Connecting Field Devices and Cloud Platform
Built-in edge computing development engine enables secondary data development and processing; open data acquisition engine supports user-defined data acquisition protocols; built-in tamper protection for remote payment reminders. Integrates data acquisition, edgecomputing,Protocol Conversion,Networktransmissioninonewhole.
Product Overview
The ESX Smart Edge Computing Gateway has a built-in edge computing development engine for secondary data development and processing. Open Data Acquisition development engine supports user-defined data acquisition protocols. Built-in tamper-proof function assists users with remote payment collection.
Integrating data acquisition, edge computing, protocol conversion, and network transmission, it is the core hub connecting field devices with cloud platforms.
Core Capabilities
- Built-in edge computing development engine, supports secondary data development and processing.
- Open Data Acquisition development engine, supports user-defined data acquisition protocols.
- Integrates data acquisition, edge computing, protocol conversion, and network transmission.
- Built-in tamper-proof function assists with remote payment collection, connecting field and cloud.
Product Features
Accurate Data
Built-in communication protocols for mainstream PLC, HMI and other devices, connect to network with simple settings.
Built-in Protocols
Built-in anomaly judgment algorithm enables millisecond-level alarm processing of data.
Alarm Pre-judgment
Built-in anomaly judgment algorithm enables millisecond-level alarm processing of data.
Easy Networking
Supports 4G, WiFi, Ethernet connection to platform, just configure and use.
Offline Data Resume
Supports SD card insertion for local storage, automatic retransmission after network recovery.
Traffic Saving
Data supports event-driven + periodic upload, greatly saving traffic.
Routing Function
Can be used as a 4G router to provide network for field devices.
Data Security
Built-in asymmetric encryption algorithm, encrypted data transmission.
Switch Function
Can be used as a switch, touch screen + PLC form a local area network through the module.
Selection Guide
Model Naming Rules
| Model | Power Supply | Display | Supported Devices | Data Points | Downstream RS485 | Upstream Wired Ethernet | Upstream Wireless 4G |
|---|---|---|---|---|---|---|---|
| ESX-0223-GR | 5V | OLED | 30 | 2000 | 2 | -- | 1 |
| ESX-0223-ER | 5V | OLED | 30 | 2000 | 2 | 1 | -- |
Technical Parameters
Basic Parameters
| Operating Voltage | DC 4.75~5.25V (5V) |
| Power Consumption | ≤12W |
| Operating Temperature | -20℃~60℃ |
| Operating Humidity | <95% |
| Weight | 150g |
| Dimensions | 36×110×69mm (L×W×H) |
| Enclosure Material | Thermoplastic UL94V0 |
| Protection Rating | IP20 |

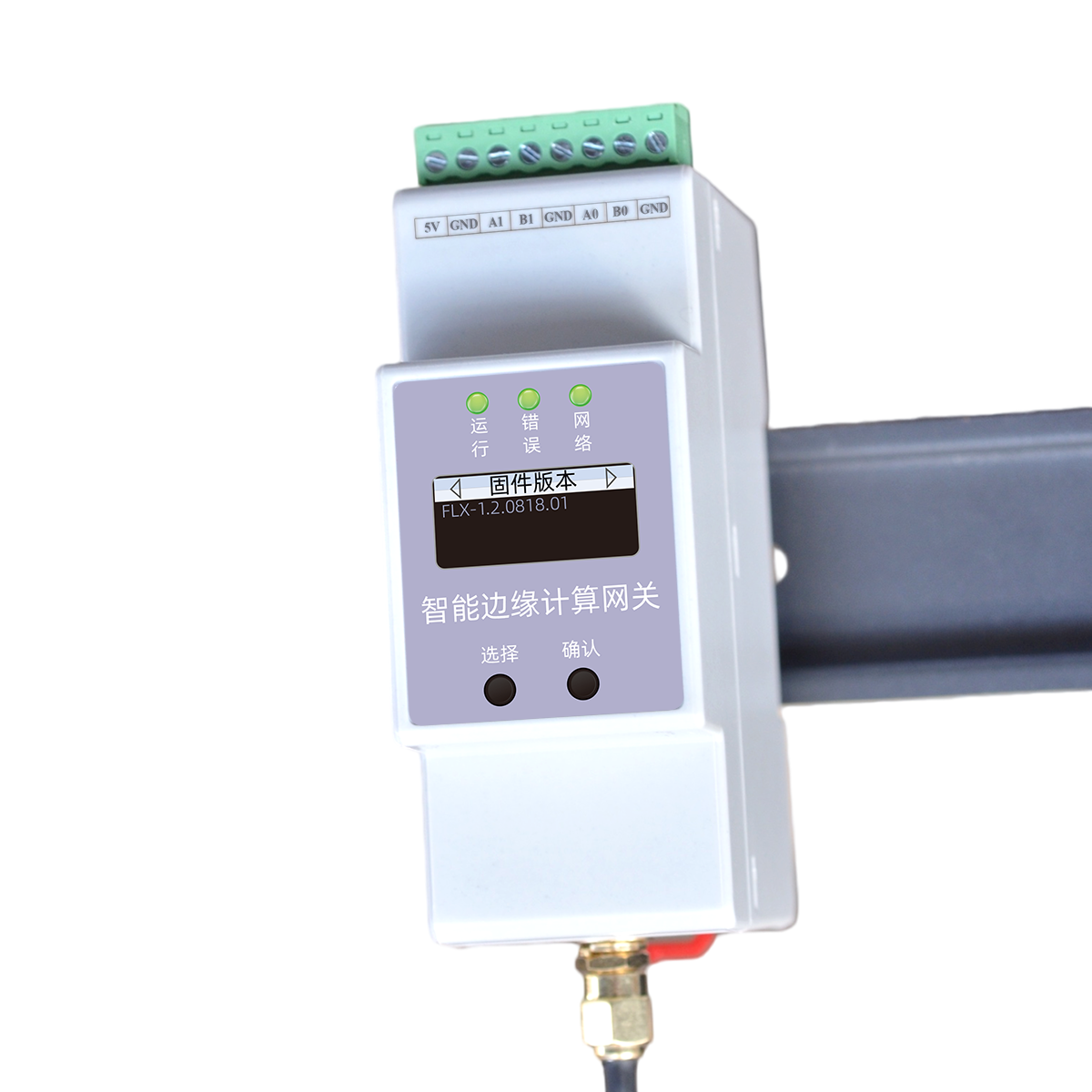

| Mounting | Standard 35mm DIN rail |
| Display | OLED |
Monitoring Functions
| Downstream Communication | RS485 |
| Upstream Communication | Wired/RS485 |
| Supported Devices | 30 |
| Data Points | 2000 |
| Downstream RS485 | 2-ch |
| Upstream Wired Ethernet | 1-ch (ESX-0223-ER) |
| Upstream Wireless 4G | 1-ch (ESX-0223-GR) |
Installation Instructions

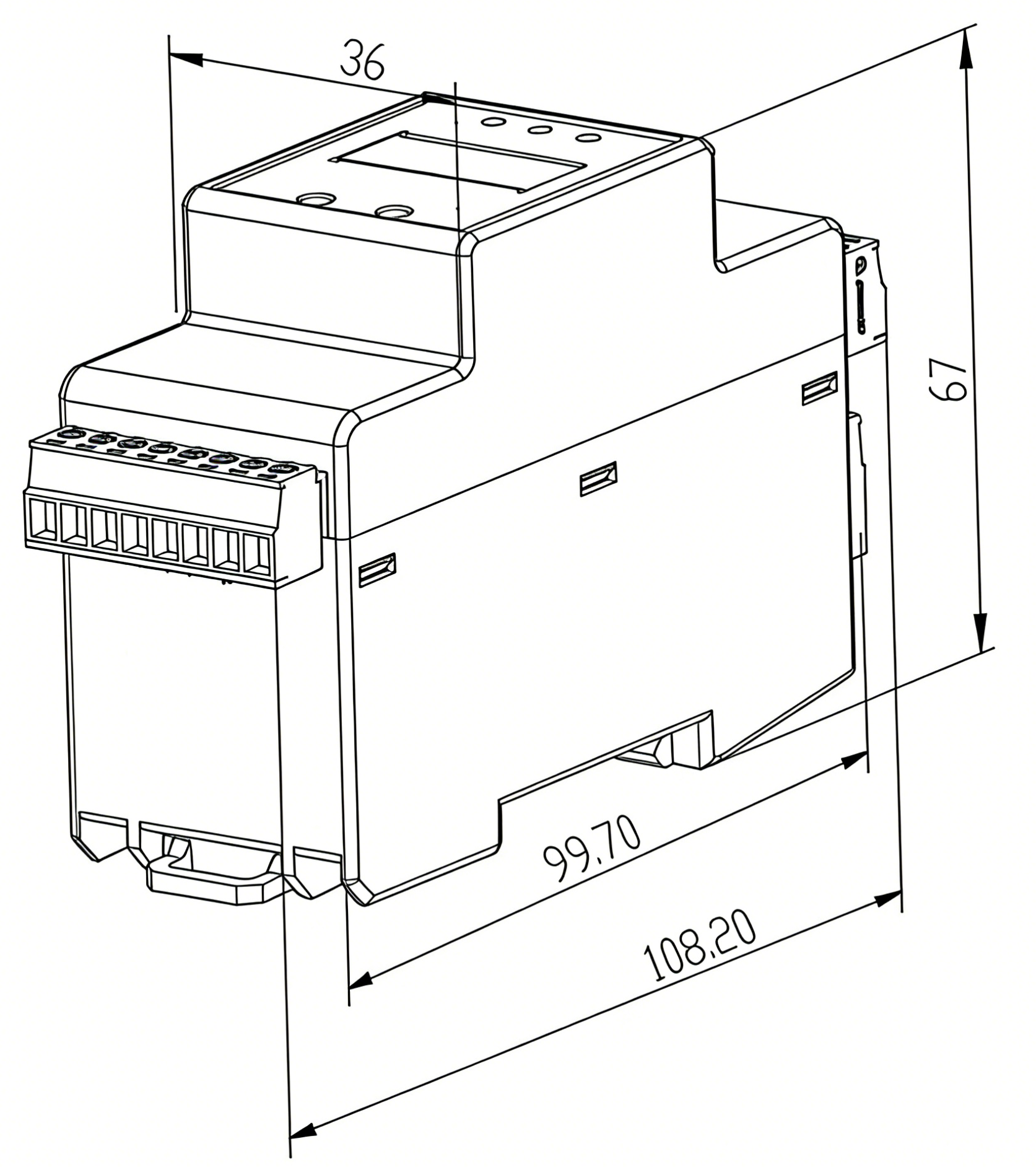

Installation Dimensions

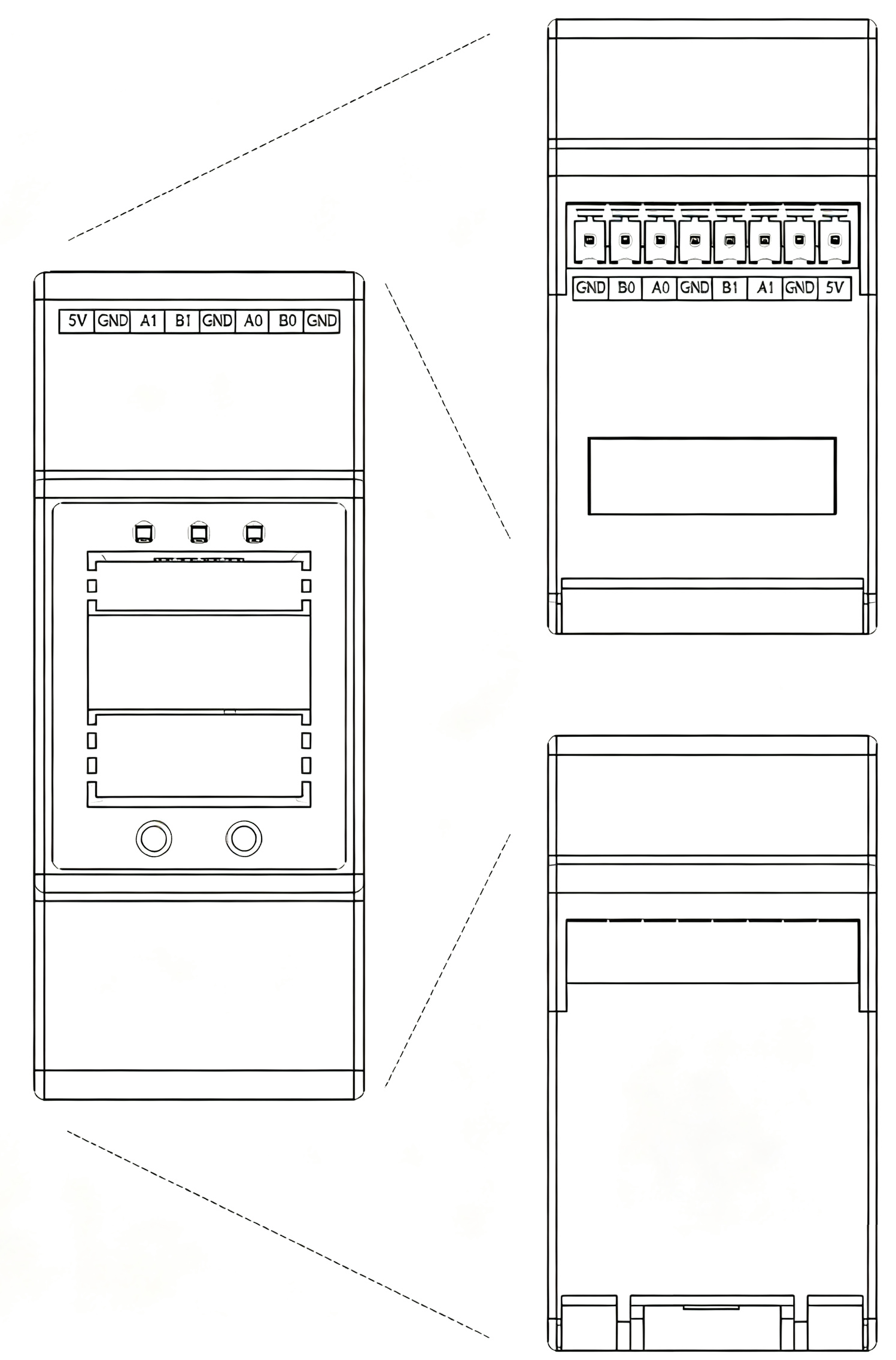

Interface Diagram

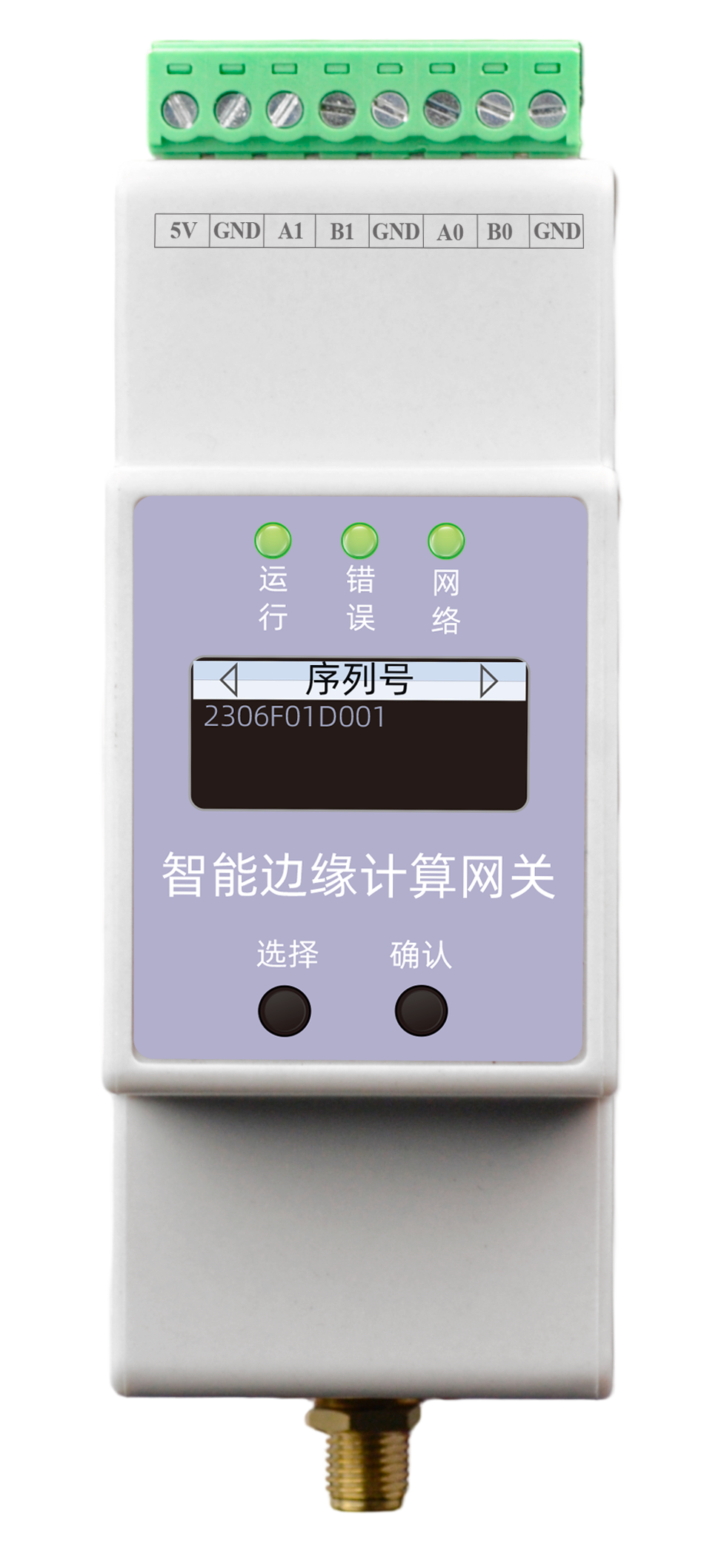

Wiring Definition
| Terminal | Definition |
|---|---|
| 5V | 5V DC power input |
| GND | 0V |
| A0 | RS485 A |
| B0 | RS485 B |
| A1 | RS485 A |
| B1 | RS485 B |
