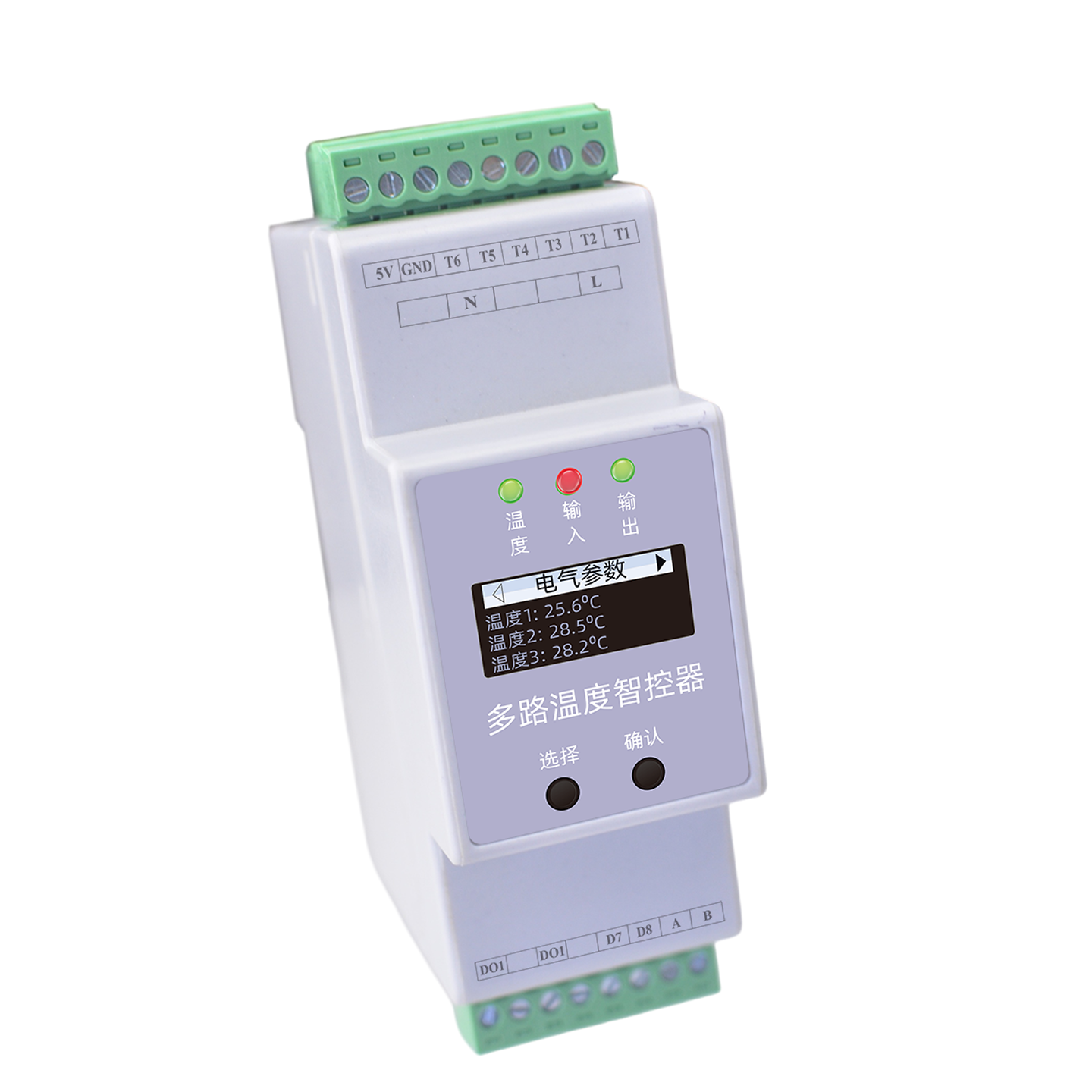

EST Temperature Monitoring Module
8/100-Channel Temperature Monitoring, Patented Algorithm + High-Precision Sensors, Making Data "Reliable" and "Smart-Controllable"
By monitoring hotspot temperatures such as switch contacts in real time, it detects early signs of abnormal heating to prevent failures. Temperature sensing relies not only on sensors but also on the module's temperature acquisition, analysis, and trend judgment, integrating "measure, control, transmit, and intelligize" in one unit.

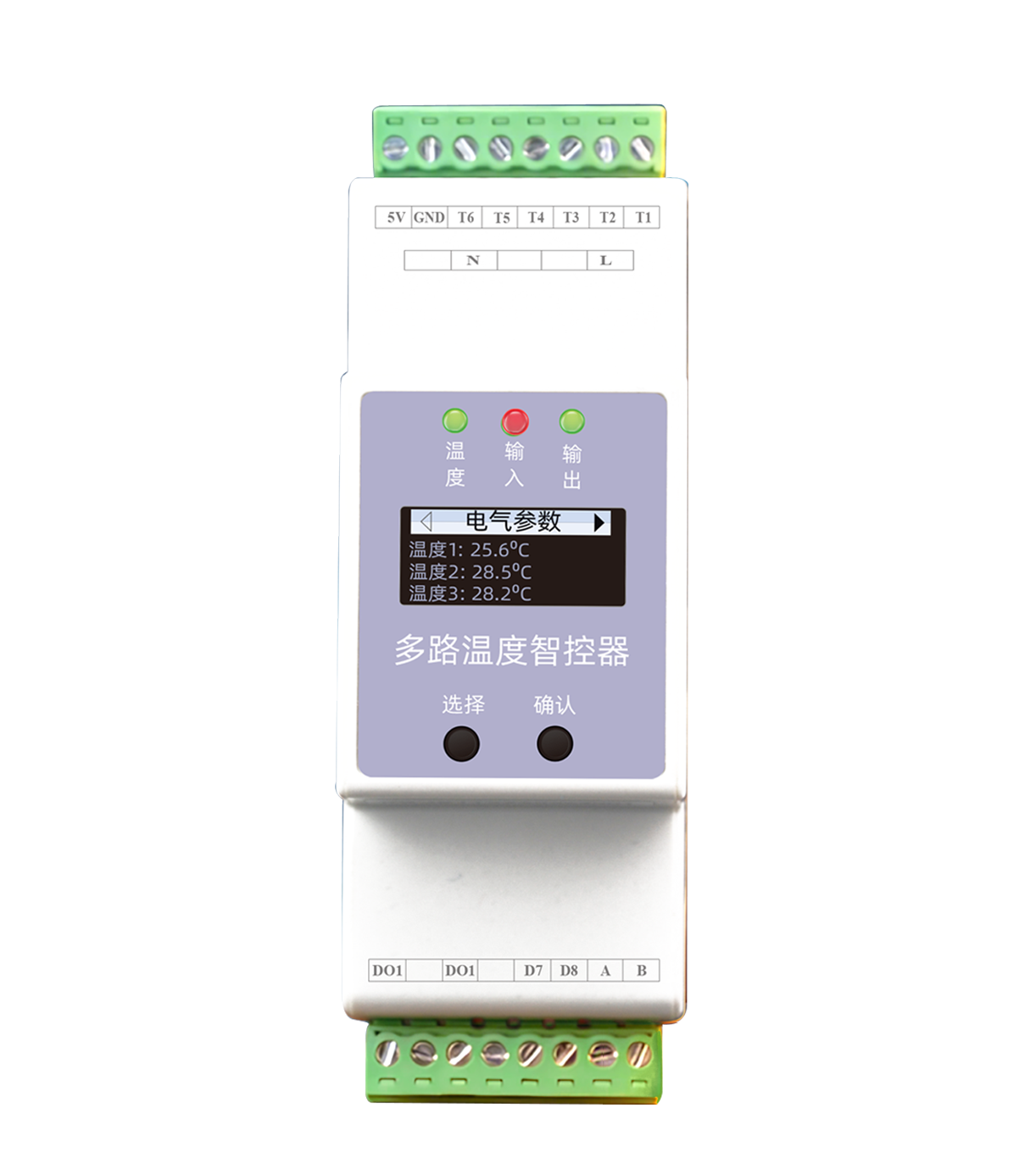

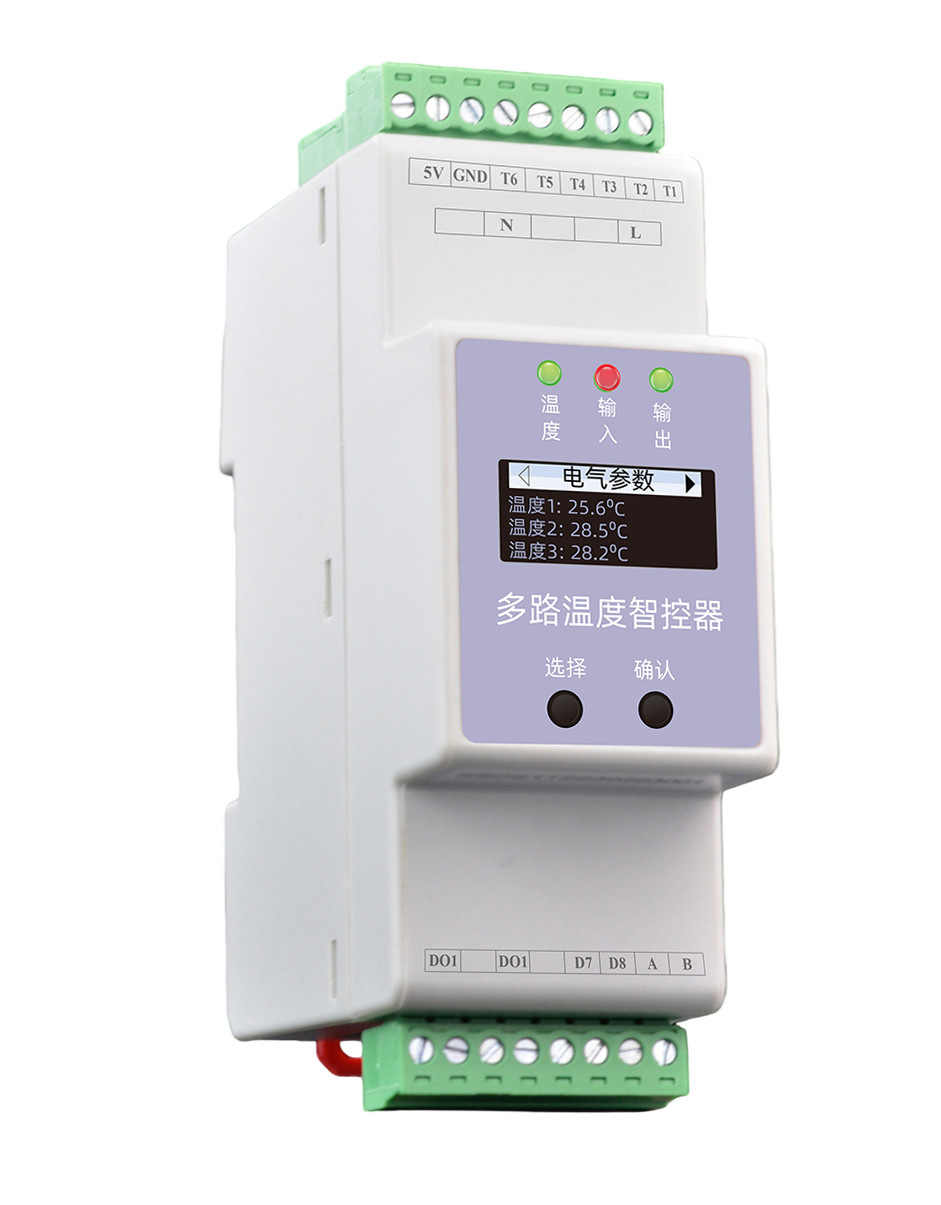

Product Overview
The EST Multi-Channel Temperature Module uses proprietary software algorithm patented technology and embedded programs, matched with industrial-grade measurement and control chips, to accurately achieve data processing and predictive analysis. By Real-Time monitoring of switch contacts and other hotspot temperatures, it can detect abnormal heating failure signs, thereby preventing failures, and through temperature history records, provides scientific data basis for "condition-based maintenance" of switch cabinets.
Temperature sensing relies not only on sensors but also on the module's temperature acquisition, analysis, and trend judgment, making data "reliable" and "smart-controllable".
Core Monitoring Capabilities
- 8/100-channel temperature monitoring, supports wired NTC and wireless 433 dual-mode temperature measurement.
- Patented algorithm + high-speed chip for accurate, fast, stable data and early prediction.
- High-precision temperature sensor, stable under strong EMI, ±1°C accuracy.
- OLED display + physical buttons, RS485/Modbus communication, 36mm compact width.
Product Features
Accurate Data
High-speed chip captures key parameters accurately, fast, and stably, enabling early prediction; unnecessary parameters such as current and humidity are removed.
Key Parameter Enhancement
High-precision temperature sensor ensures stable operation under strong EMI.
All-Weather Sensor
Applications include temperature monitoring and management of single-channel or multi-channel contacts in distribution cabinets and boxes; can also be used for multi-channel temperature measurement in environments and specific spaces.
Wide Applicability
Suitable for temperature monitoring in distribution cabinets, distribution boxes, switch contacts, and environmental spaces.
Compact and Flexible
Supports linkage control; standard OLED display and physical buttons for convenient field query and configuration; RS485/Modbus; 36mm compact width for Easy Deployment in tight spaces.
Selection Guide
Model Naming Rules
| Model | Power Supply | Display | Temperature Channels | Relay Output | RS485/Modbus |
|---|---|---|---|---|---|
| EST-12210-R | 5V | OLED | 8 | 1 | Yes |
| EST-22210-R | 220V | OLED | 8 | 1 | Yes |
| EST-12920-R | 5V | OLED | 100 | --- | Yes |
| EST-22920-R | 220V | OLED | 100 | --- | Yes |
Technical Parameters
Basic Parameters
| Operating Voltage | DC 4.75~5.25V (5V) or AC 180~250V (220V) |
| Power Consumption | ≤2W |
| Operating Temperature | -20℃~60℃ |
| Operating Humidity | <95% |
| Weight | 150g |
| Dimensions | 36×110×69mm (L×W×H) |
| Enclosure Material | Thermoplastic UL94V0 |
| Protection Rating | IP20 |

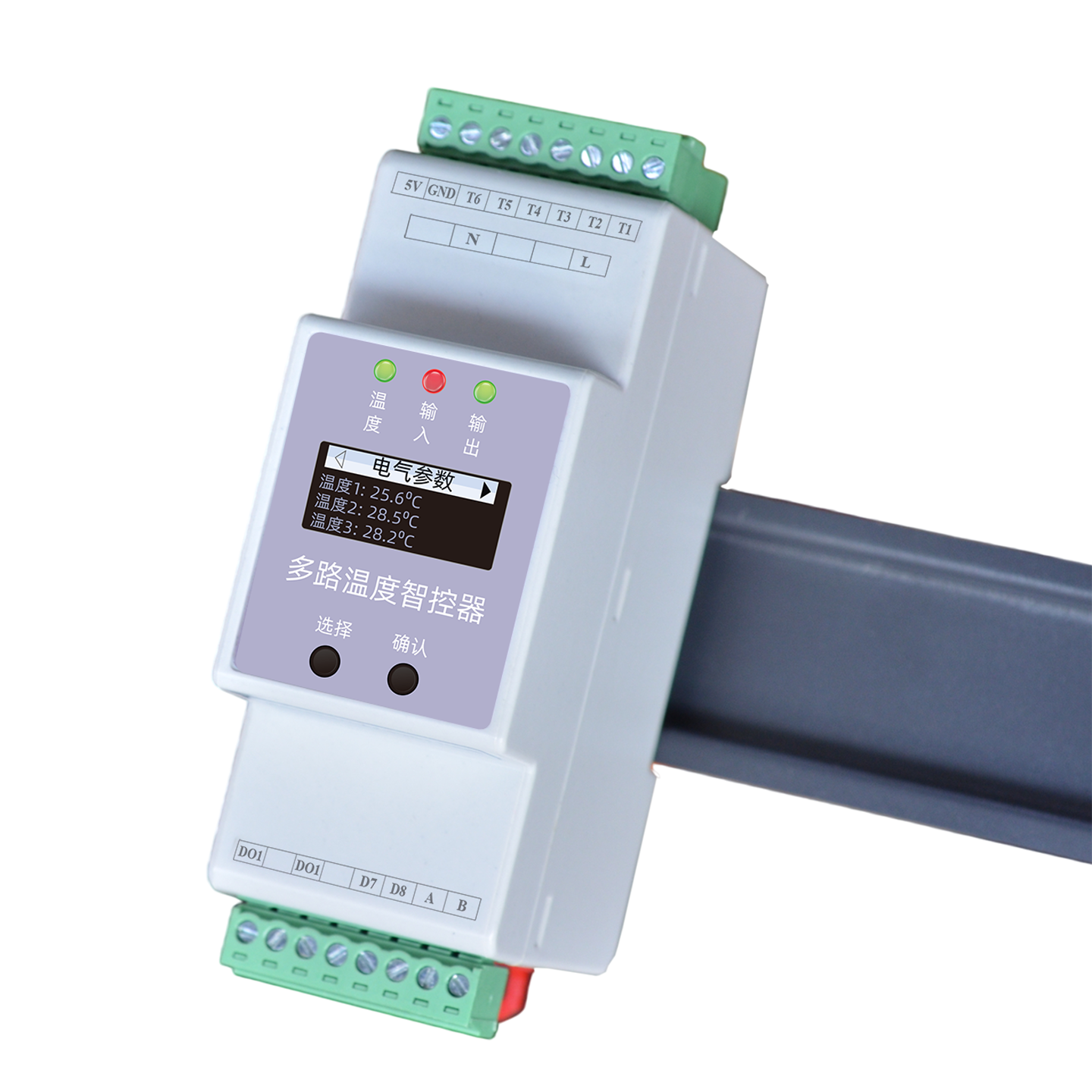

| Mounting | Standard 35mm DIN rail |
| Display | OLED |
| Communication | RS485 |
| Protocol | Modbus |
Monitoring Functions
| Wired Temperature | NTC measurement: -30~125°C, ±1°C |
| Wireless Temperature | Active measurement: -20~100°C, ±1°C; communication: LoRa; max channels: 100-ch; sampling period: 1min (configurable); effective distance: ≤300m |
| DO Output | Relay output; contact capacity: AC250V/3A, DC30V/3A; normally open contact |
Installation Instructions

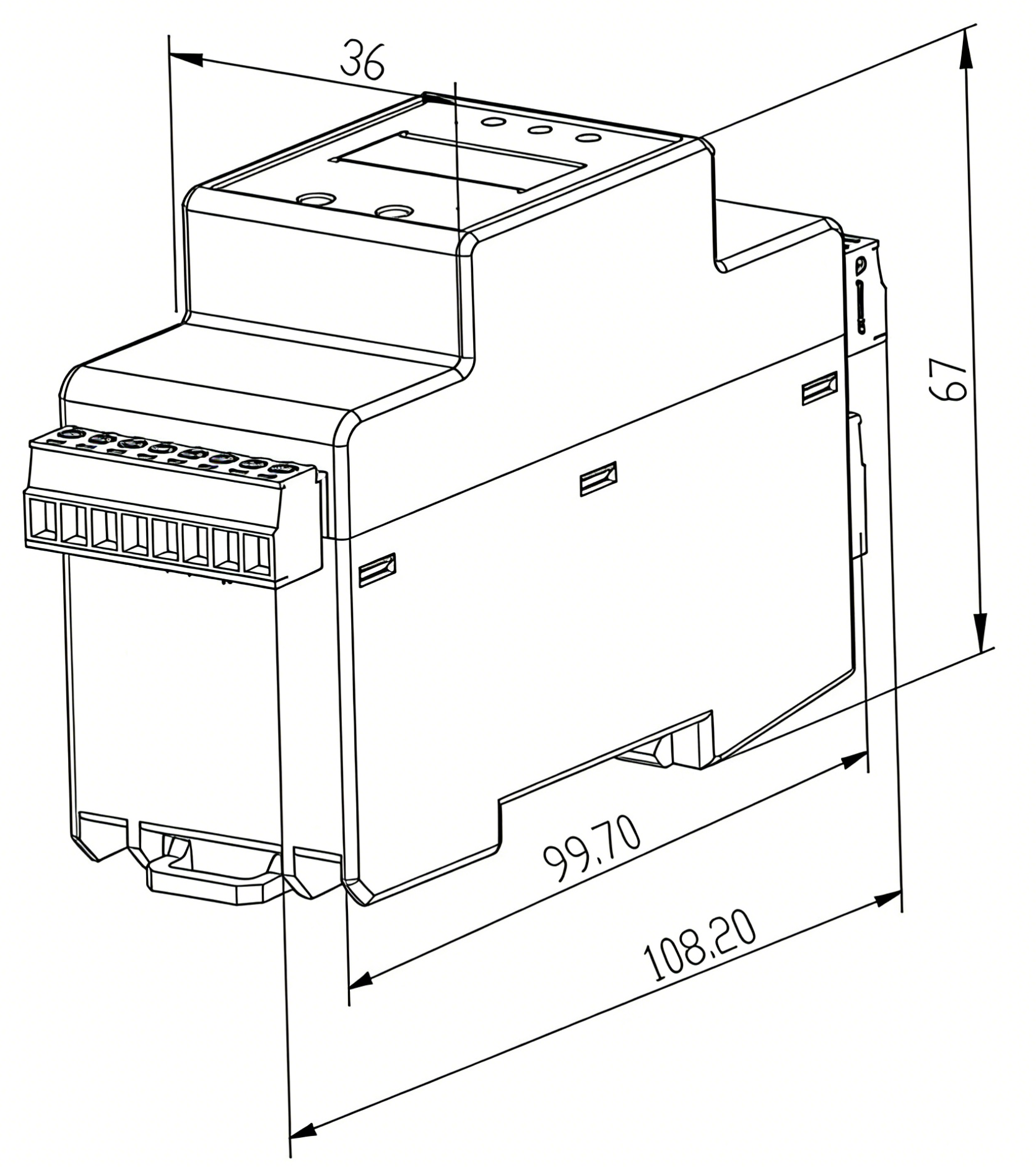

Installation Dimensions
Sensor Description

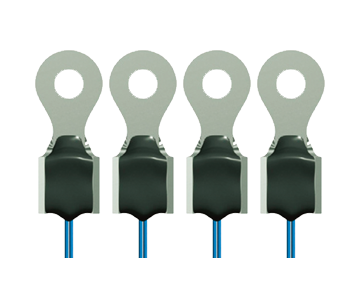

NTC Sensor Specifications
| Parameter | Specification |
|---|---|
| Resistance (R25°C) | 10kΩ |
| Cable Length (default) | 1m |

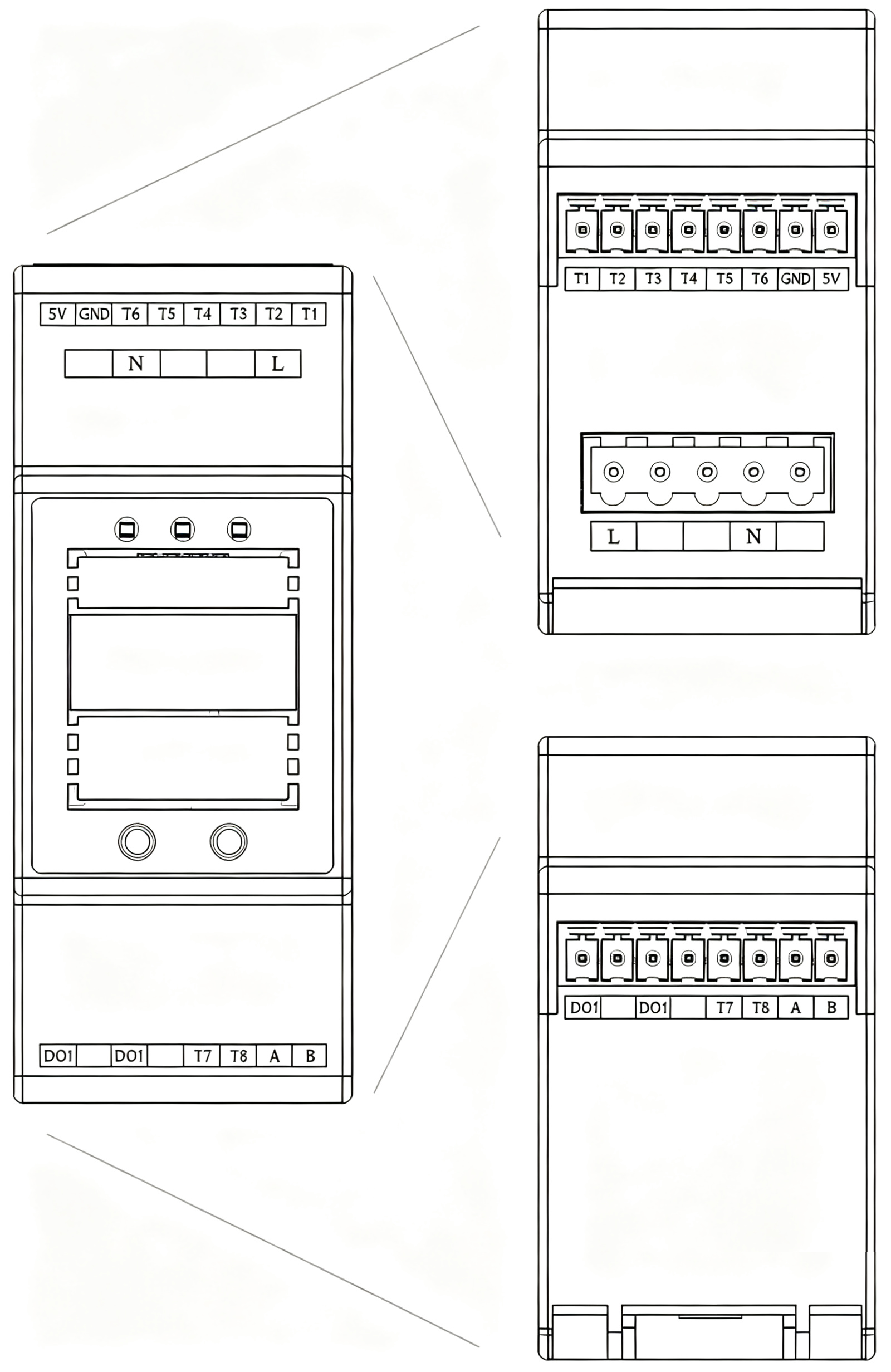

Interface Diagram
Wiring Definition
| Terminal | Definition |
|---|---|
| L1 | Live wire |
| N | Neutral wire |
| 5V | 5V DC power input |
| GND | 0V |
| A | RS485 A |
| B | RS485 B |
| DO1 | Output (relay, no polarity) |
| DO1' | Output' (relay, no polarity) |
| T1 | NTC temperature 1 input (other end to GND, polarity-independent) |
| T2 | NTC temperature 2 input (other end to GND, polarity-independent) |
| T3 | NTC temperature 3 input (other end to GND, polarity-independent) |
| T4 | NTC temperature 4 input (other end to GND, polarity-independent) |
| T5 | NTC temperature 5 input (other end to GND, polarity-independent) |
| T6 | NTC temperature 6 input (other end to GND, polarity-independent) |
| T7 | NTC temperature 7 input (other end to GND, polarity-independent) |
| T8 | NTC temperature 8 input (other end to GND, polarity-independent) |
Note: 220V AC input and 5V DC input are mutually exclusive.
Key Points
- Definition： The EST Multi-Channel Leakage Controller is FEXLINK's multi-channel residual current monitoring device for multi-circuit leakage monitoring in distribution systems.
- Core Capabilities： Multi-channel parallel residual current acquisition with threshold alarms and RS485 upload; integrates with electrical fire systems.
- Scenarios： Suitable for multi-circuit distribution boxes, commercial complexes and hospitals requiring multi-point leakage monitoring.
- Related Products： ESA Electrical Safety Terminal, ESF Electrical Fire Controller, SFA Multi-Element Controller.
Frequently Asked Questions
Product FAQ
What is EST Multi-Channel Leakage Controller?
The EST Multi-Channel Leakage Controller is FEXLINK's multi-channel residual current monitoring device for multi-circuit leakage monitoring in distribution systems.
What scenarios does EST Multi-Channel Leakage Controller apply to?
Suitable for multi-circuit distribution boxes, commercial complexes and hospitals requiring multi-point leakage monitoring.
How does EST Multi-Channel Leakage Controller differ from traditional solutions?
Compared with single-circuit leakage monitoring, the EST provides multi-channel parallel monitoring, covering more circuits per device at lower cost.
How is EST Multi-Channel Leakage Controller installed and integrated?
DIN-rail mount inside the distribution cabinet, connect residual-current CTs from each circuit to the corresponding channels, and wire the RS485 bus.
How can I purchase FEXLINK products or request a demo?
Submit requirements via the Contact page on the FEXLINK website, or call +86-755-8653-6148 to request a demo and selection consultation; engineers will propose a matched solution and quotation based on your scenario.
